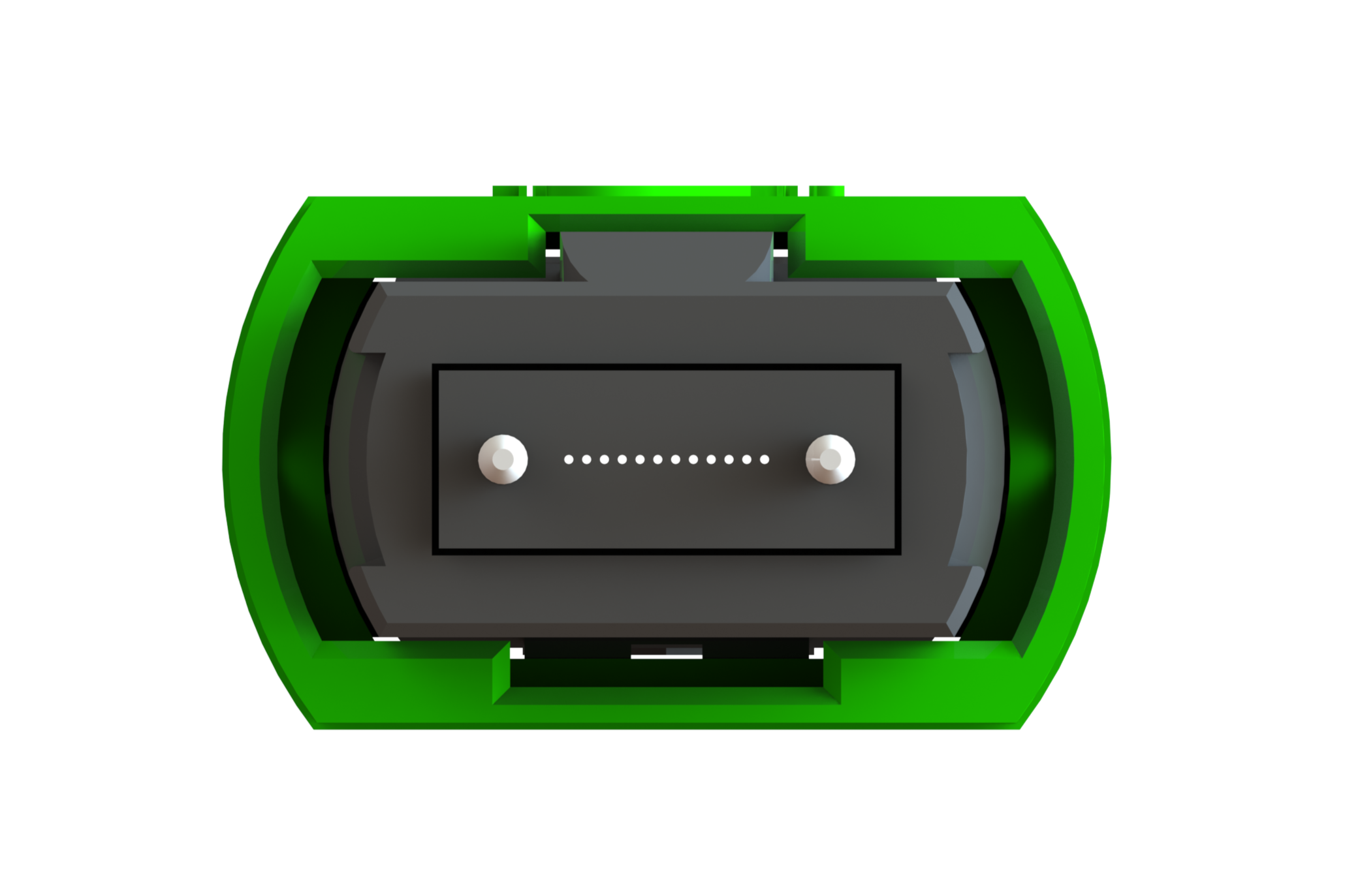

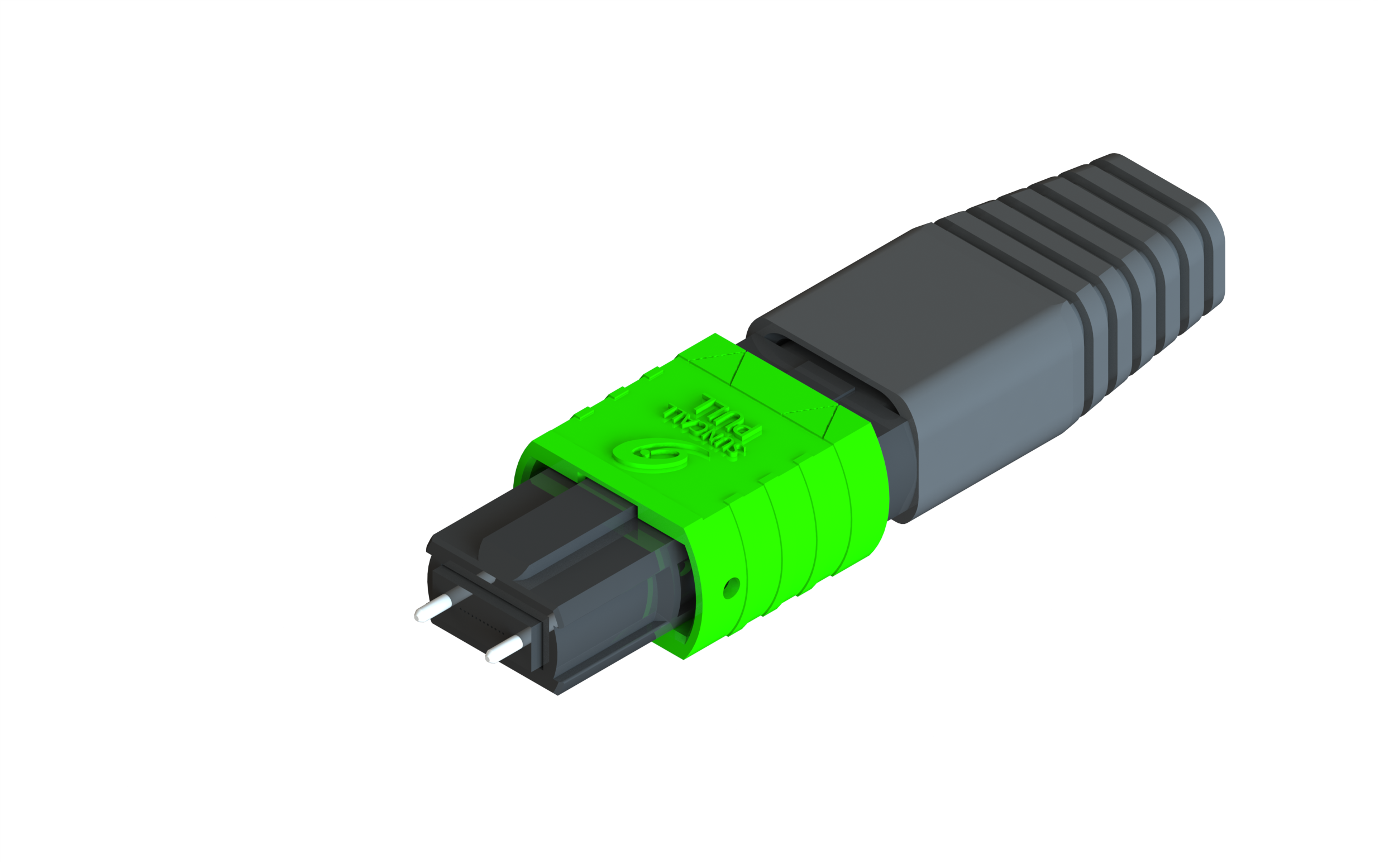

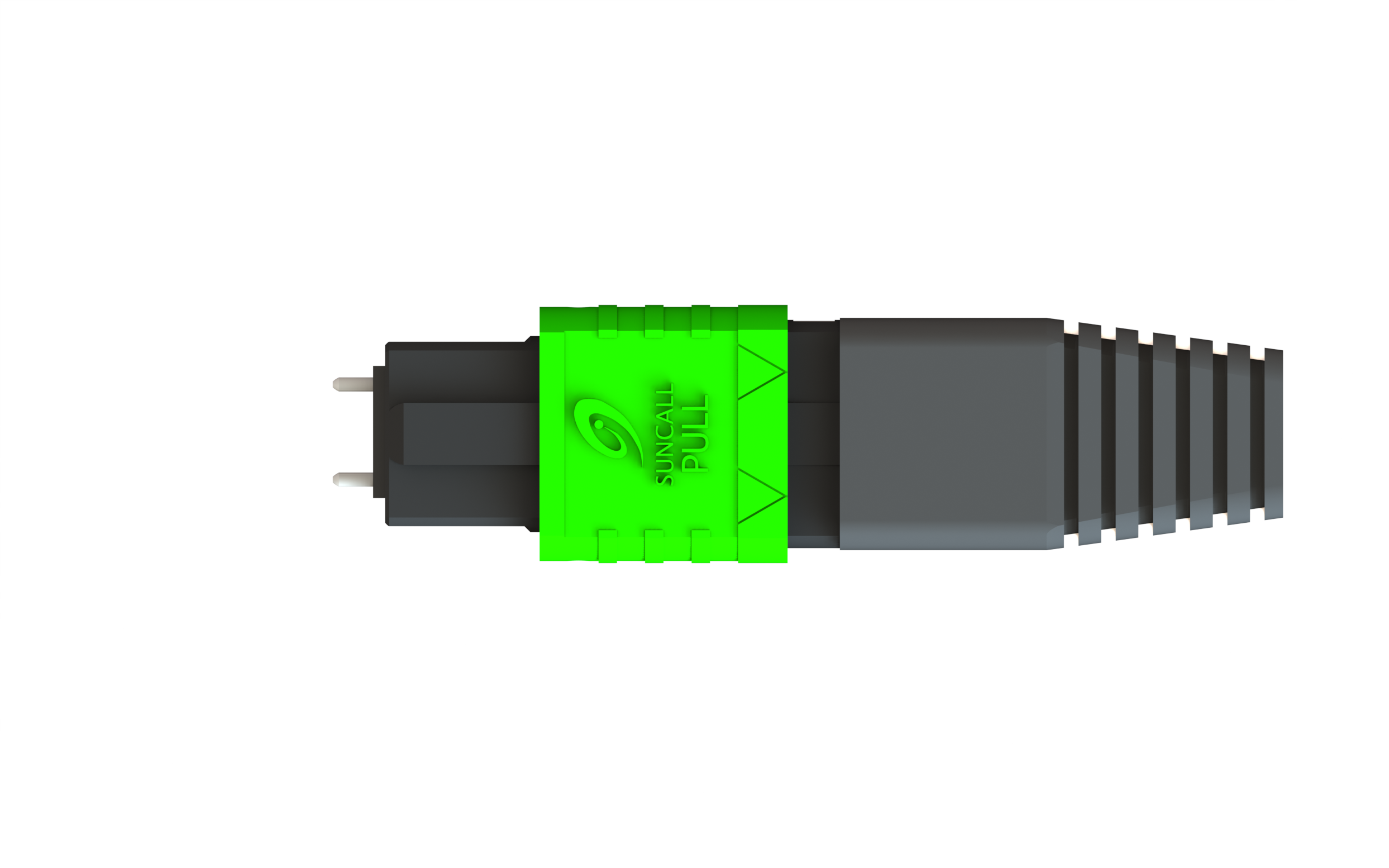

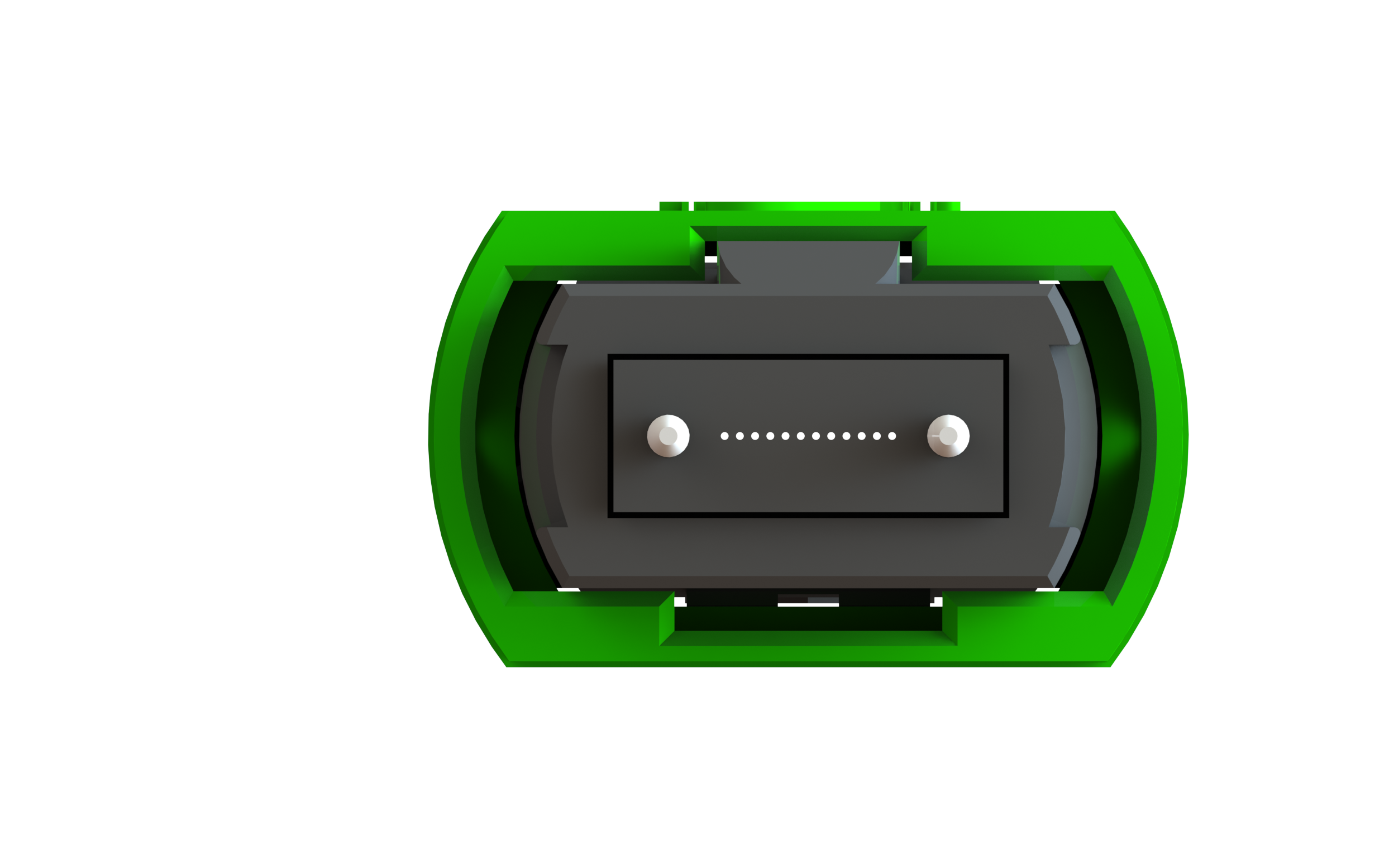

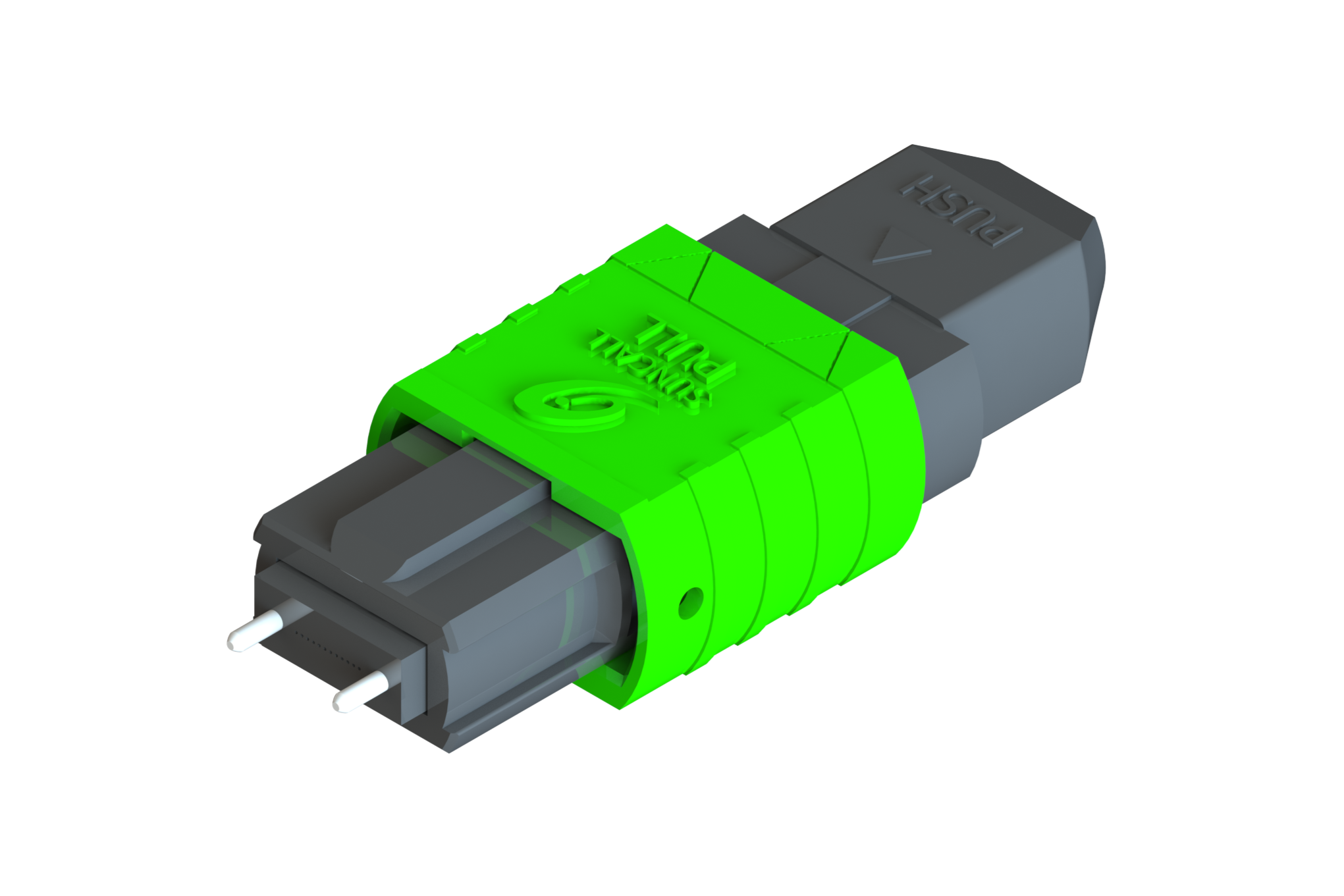

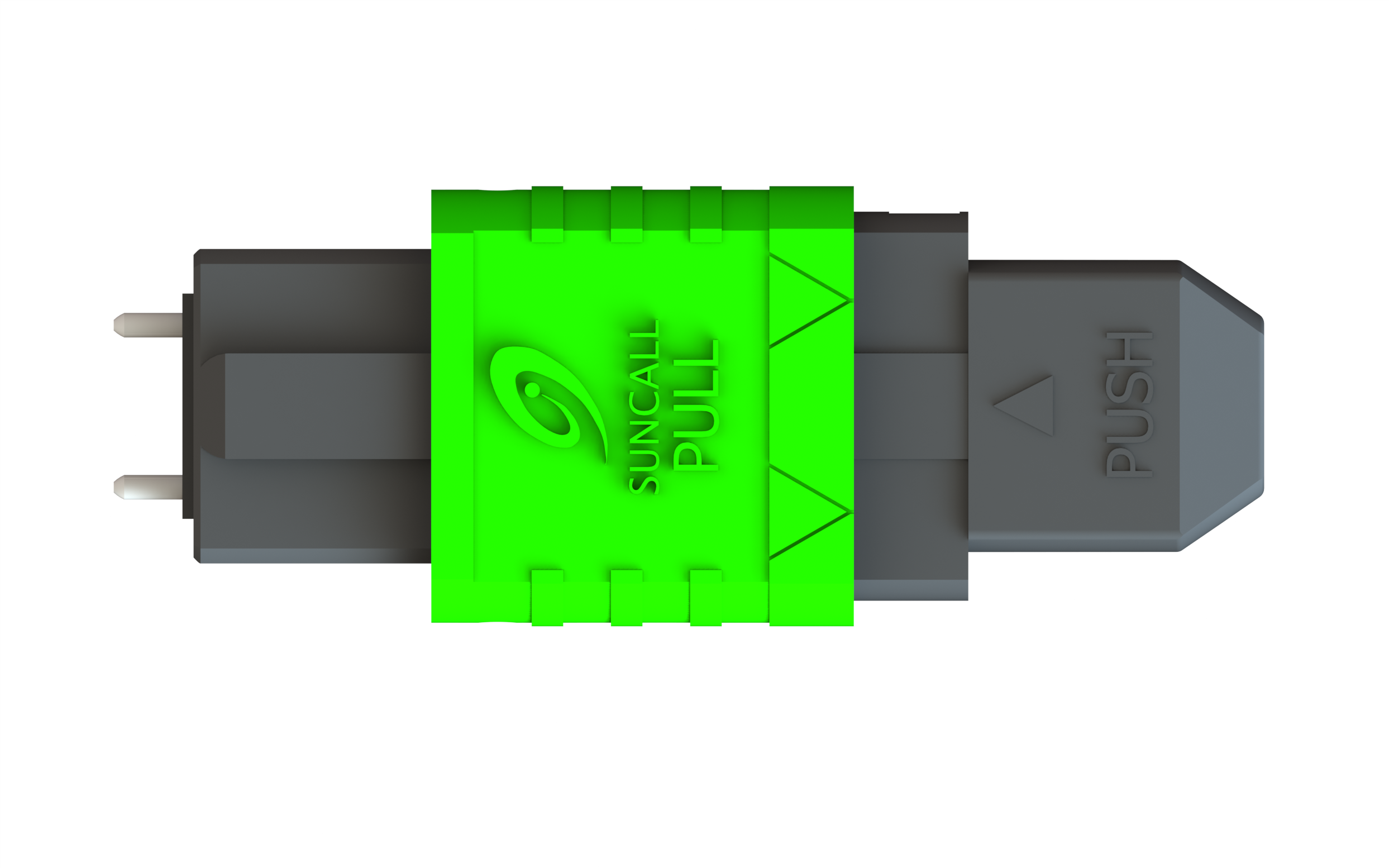

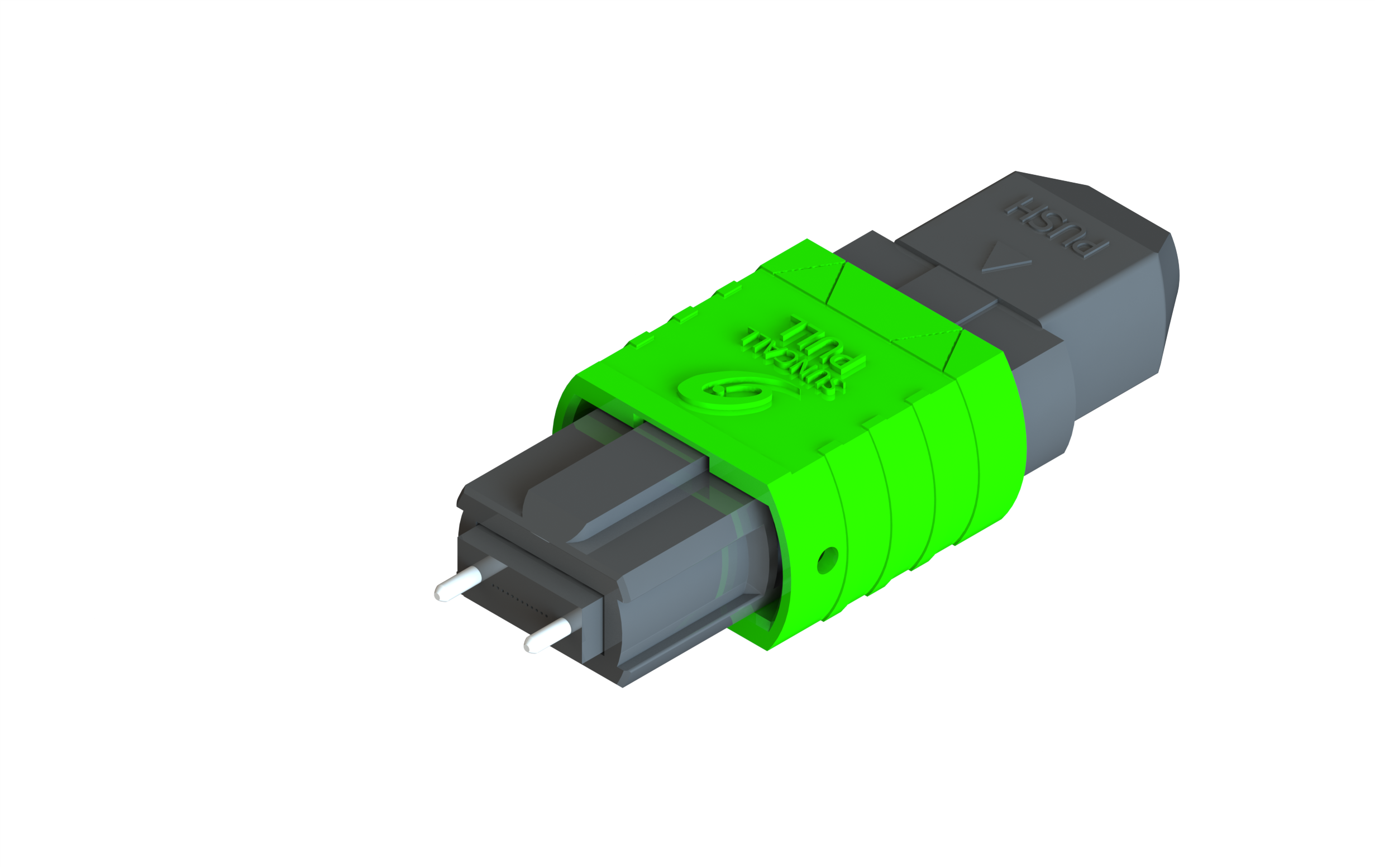

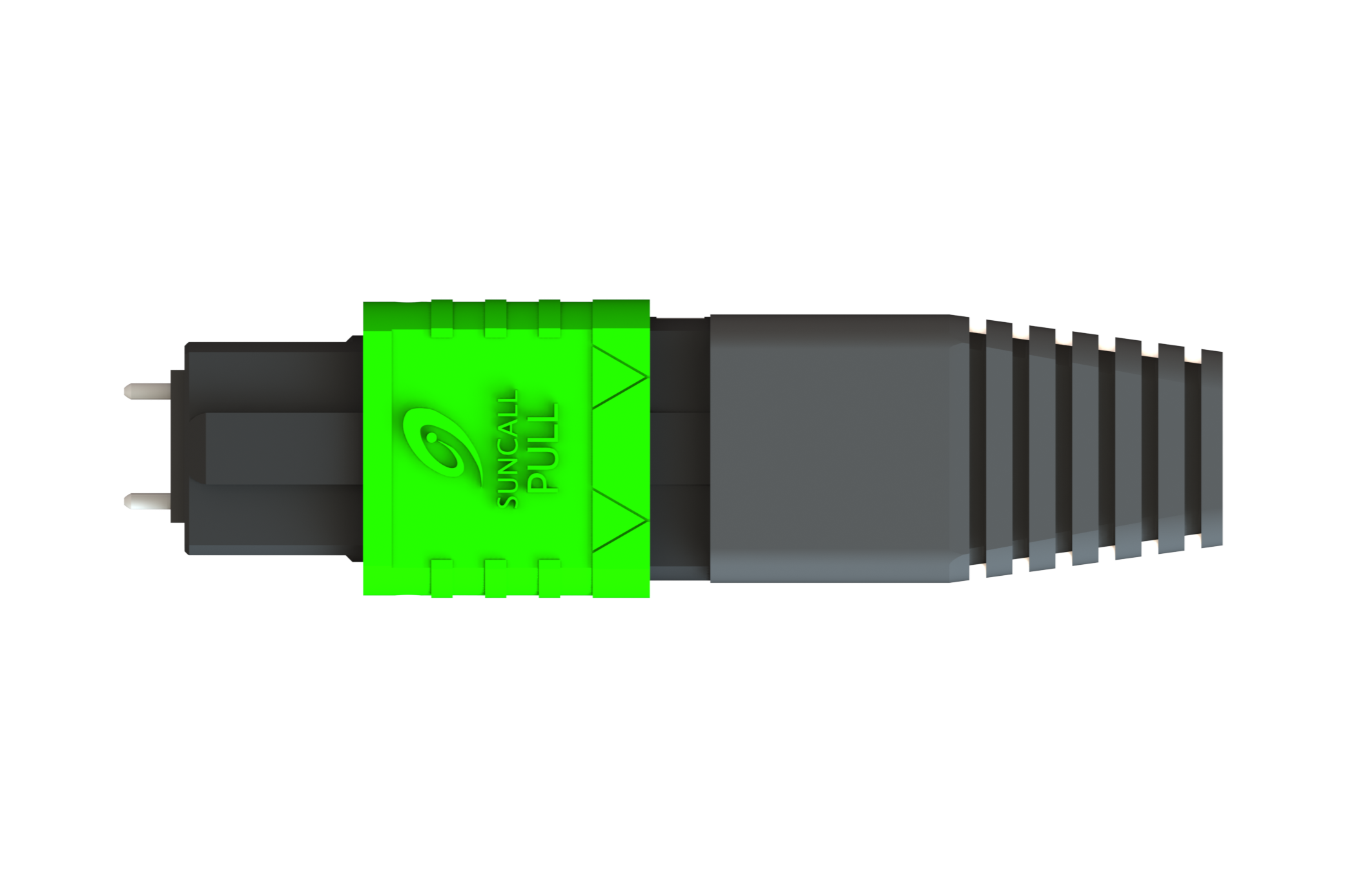

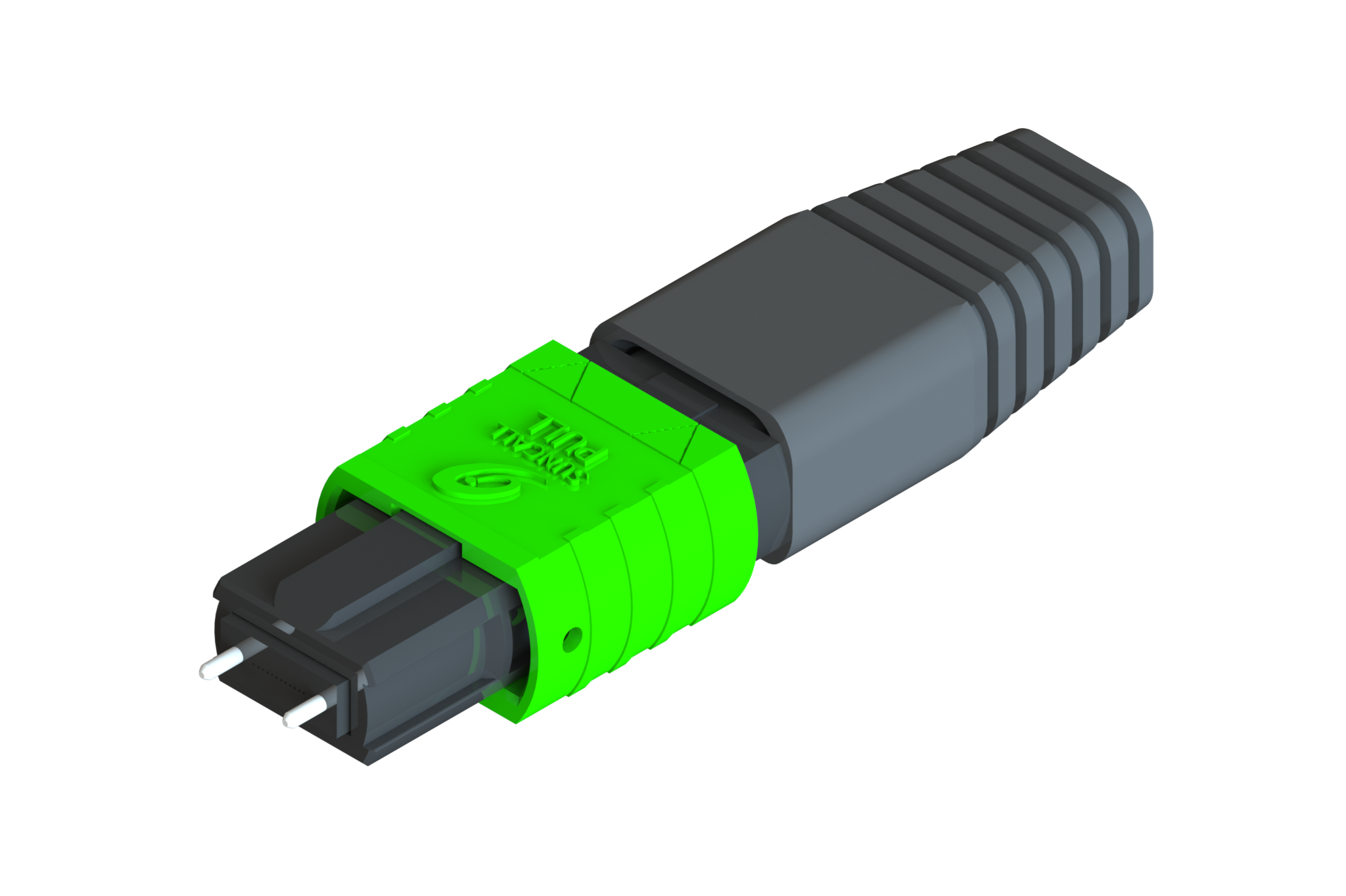

MPO 连接器

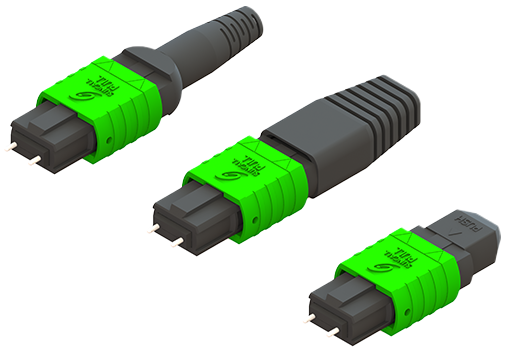

MPO 连接器具备卓越的性能与可靠性，可满足行业内高要求高速系统及网络的应用标准。产品采用经典推拉式操作设计，插拔便捷，且传输插入损耗更低，提供多种尾套类型选择。可按需定制连接器的各项参数，包括尾套类型、插芯类型、壳体颜色等

光纤类型：12 Fibers, 24 Fibers

适用模式：SM, MM, Low Loss SM, Low Loss MM

插入损耗：SL 0.35dB/SM 0.7dB/ML 0.35dB/MM 0.6dB

回波损耗：SL 60dB (8°polish)/SM 60dB (8°polish)/ML 20dB (flat polish)/ MM 20dB (flat polish)

参照标准：IEC-61754-7 标准

在此选择产品规格

Series		Boot Type		Product Type		Housing Color		Ferrule Core/No Ferrule		Boot Type		Crimp Type		Cable Spec		Logo
MPO	MPO Series	PA	Pre Assy	M	Male	AQ	Aqua	W08	8 Core	RS	Round Short Boot	HS	Heat Shrink Tube	20N	Φ 2.0mm Cable (RS only)	L	Suncall Logo
				F	Female	BG	Beige	W12	12 Core	RD	Round Standard Boot	OC	One Crimp	30N	Φ 3.0mm Cable (RD only)	N	No Logo
						GR	Green	W24	24 Core	BS	Ribbon	TC	Two Crimp	35N	Φ 3.5mm Cable
						HV	Heather Violet	N08	8 Core without ferrule	JS	Ribbon with Jacket			NN	NA (BS & JS only)
						YE	Yellow	N12	12 Core without ferrule
								N24	24 Core without ferrule
