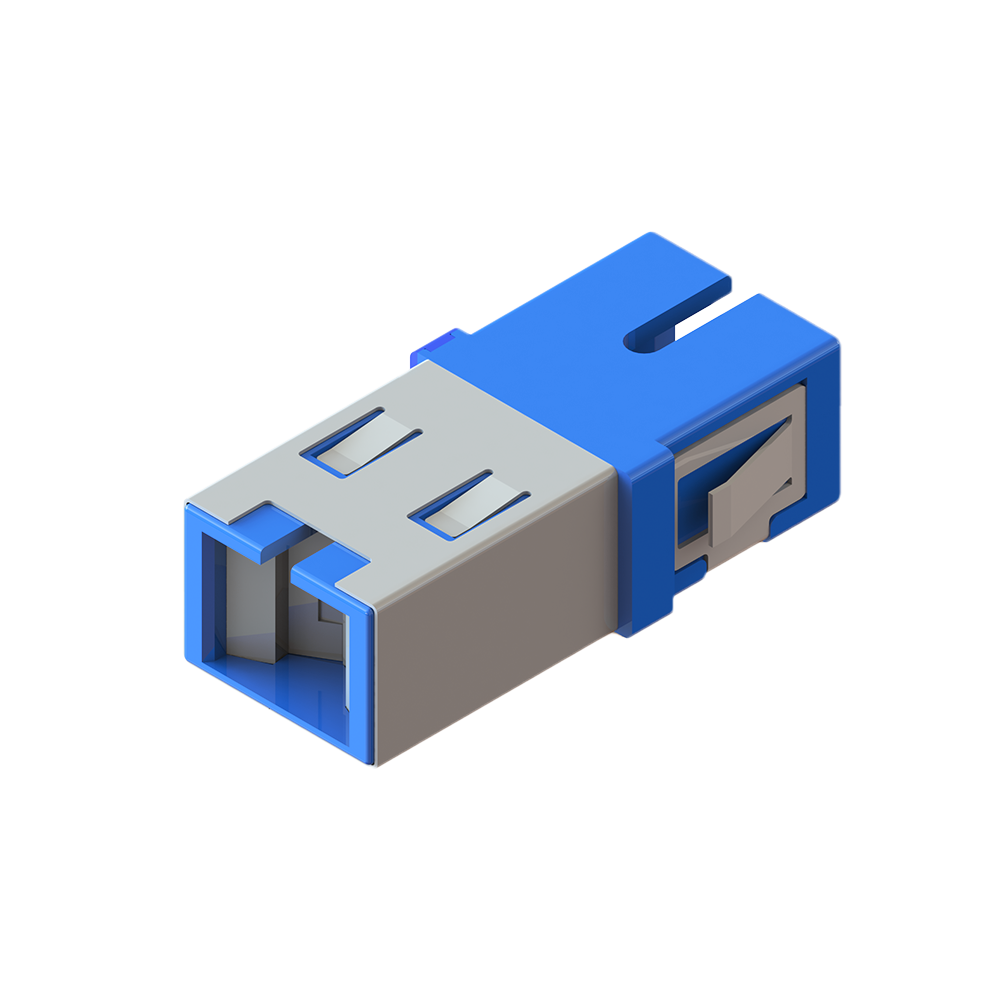

SC Simplex Internal Shutter Adapters

The New Suncall America SC Internal Shutter Adapters are used for single, multi-mode, or APC applications. The internal shutters provide maximum protection from lasers, dust and other debris while protecting the ferrule. The snap-in side spring latch provides quick and secure installation.

Housing Color

SC Simplex Internal Shutter Adapters

Product Features


Environmentally friendly design, eliminates the need for dust caps
Internal shutters provide protection against laser exposure, dust and debris
Easy VFL detection
Protects the ferrule from physical contact
Available in a variety of colors


Fiber Type：SM (9/125)，MM (50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC (55dB or more)，APC (65dB or more）
Reference Standard：IEC-61754-4-SC-ED and TIA 604-3-B

Select the product specifications here

  • 01

    Sort

Model List

Series
Shuttee TypeSpring TypeHousing TypeSleeve TypeHousing Color
SC1 SC Simplex AdapterIWhite Internal ShutterRRegular SpringSNNo Flange ZZirconiaAQAqua


TTranslucent Internal ShutterSSide Stable Spring



BGBeige










BLBlue










GRGreen
























  • SC Simplex Internal Shutter Adapter
