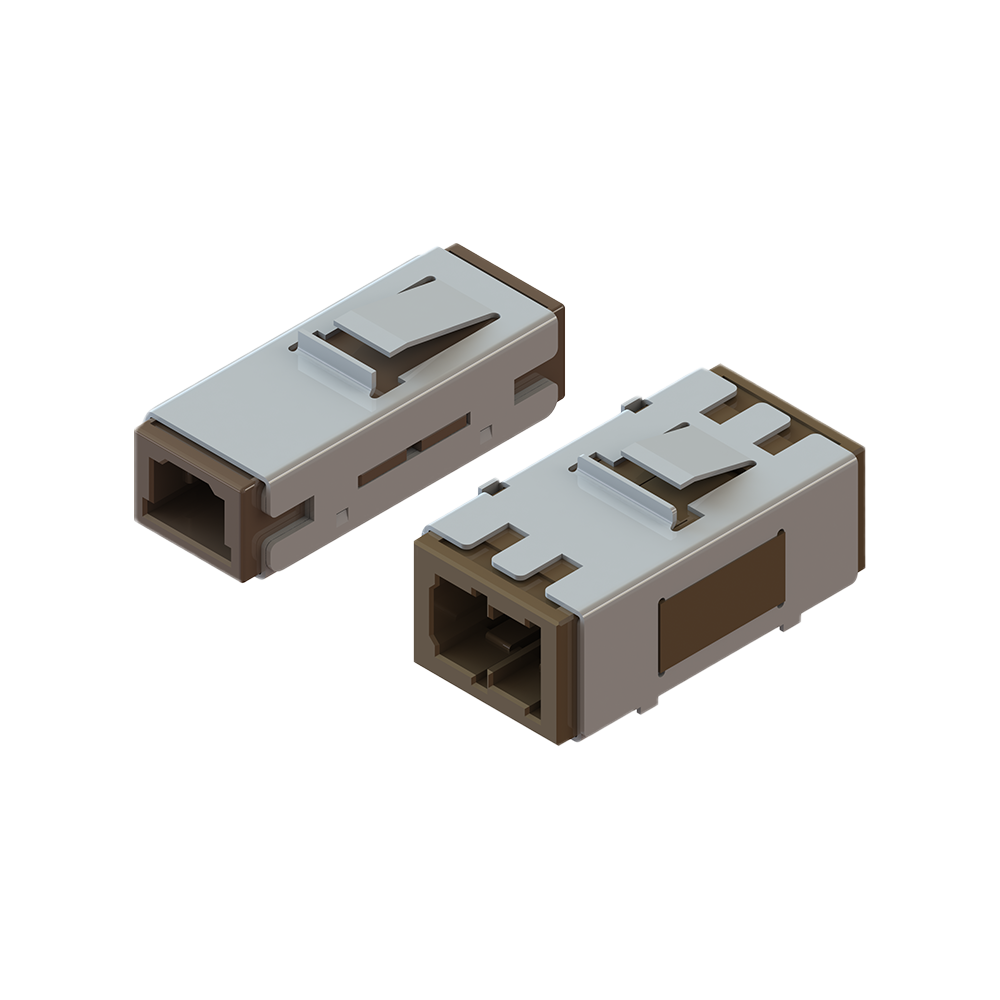

MU Simplex & Duplex Adapters

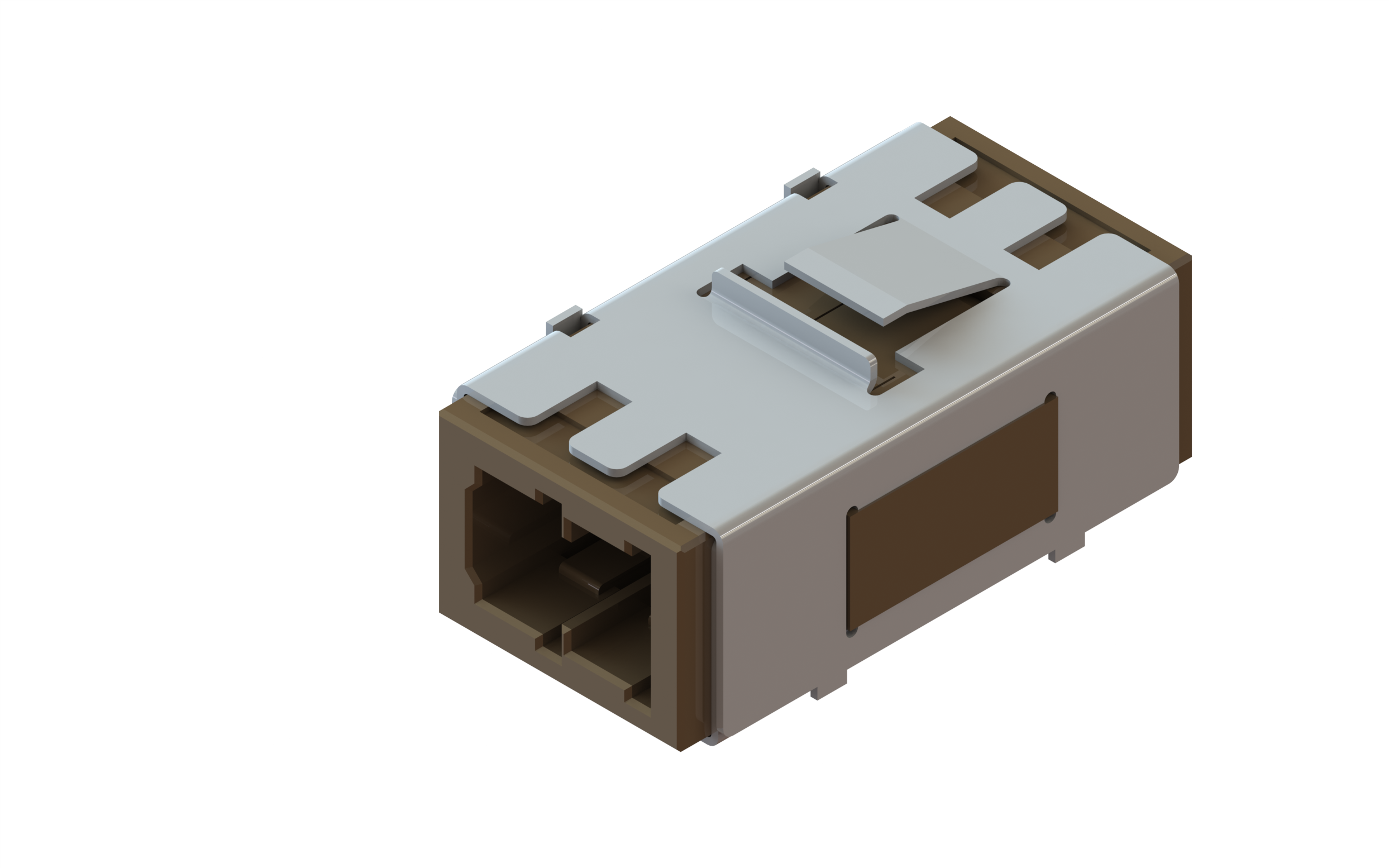

MU Simplex and Duplex Adapters are small form factor (SFF) adapters with a flangeless body design and 4.5mm optical pitch, ideal for high-density mounting. The metal spring latches allow for easy placement into panels, and the zirconia split-sleeve ensures high-precision alignment.

Housing Color

MU Simplex & Duplex Adapters

Product Features


Small form factor (SFF) adapters
Flangeless body design
Ideal for high-density mounting

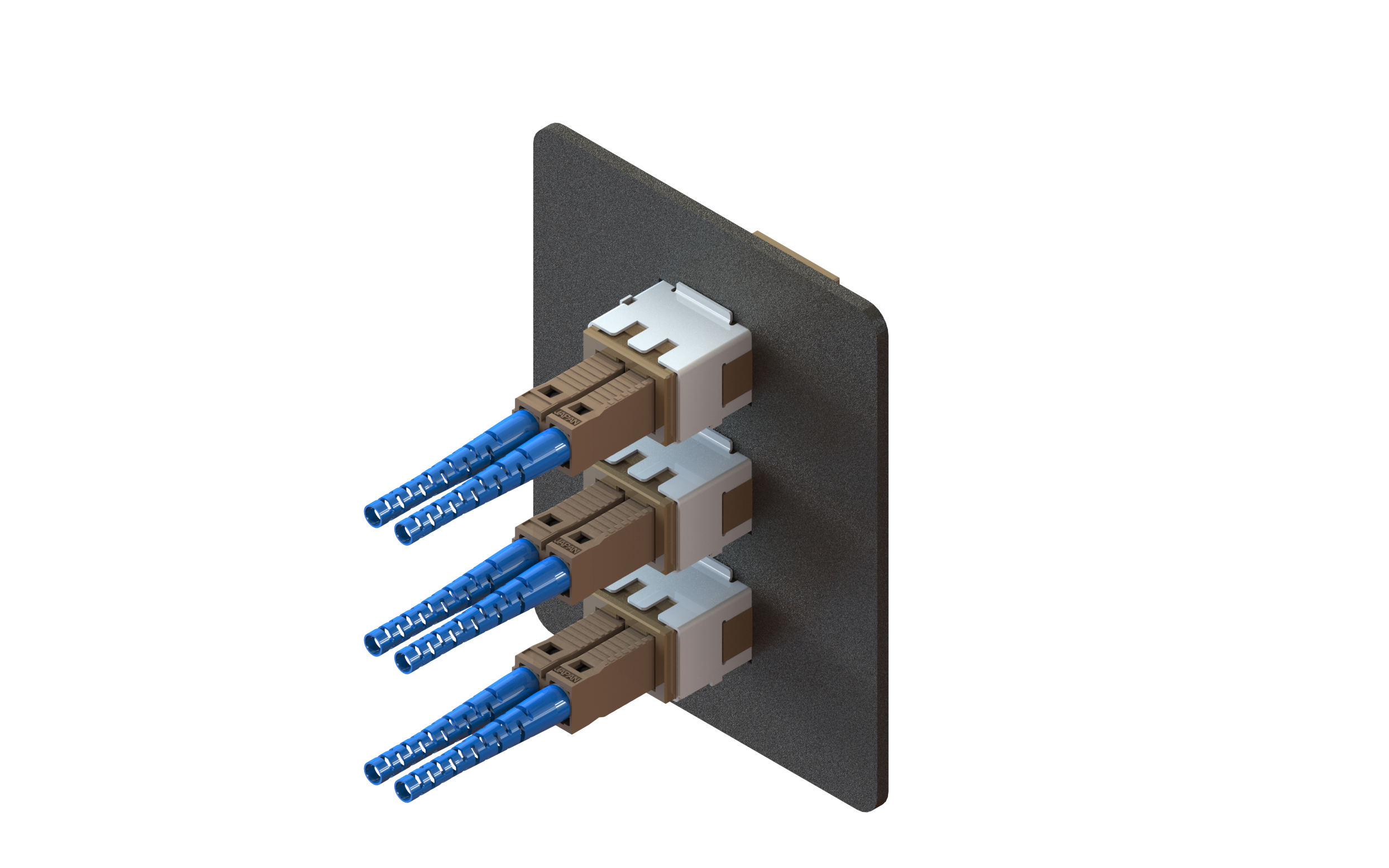

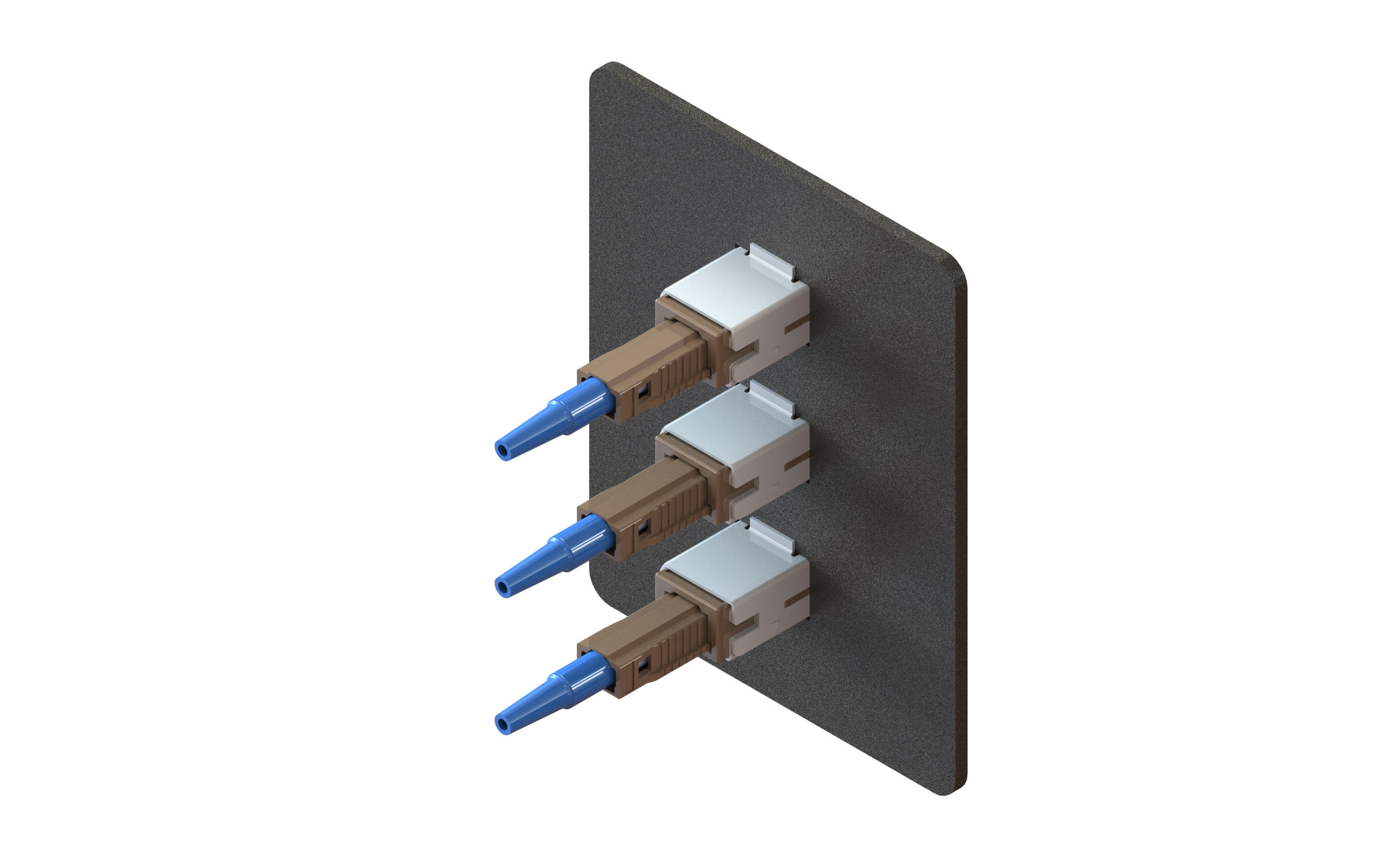

Metal spring latches allow for easy placement into panels


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC(55dB or more) ,APC（65dB or more）
Reference Standard：IEC-61754-6-1997 and IEC-61755-3-2

Select the product specifications here

  • 01

    Sort

Model List

SeriesShutter Type Spring TypeHousing Type
 Sleeve TypeHousing Color

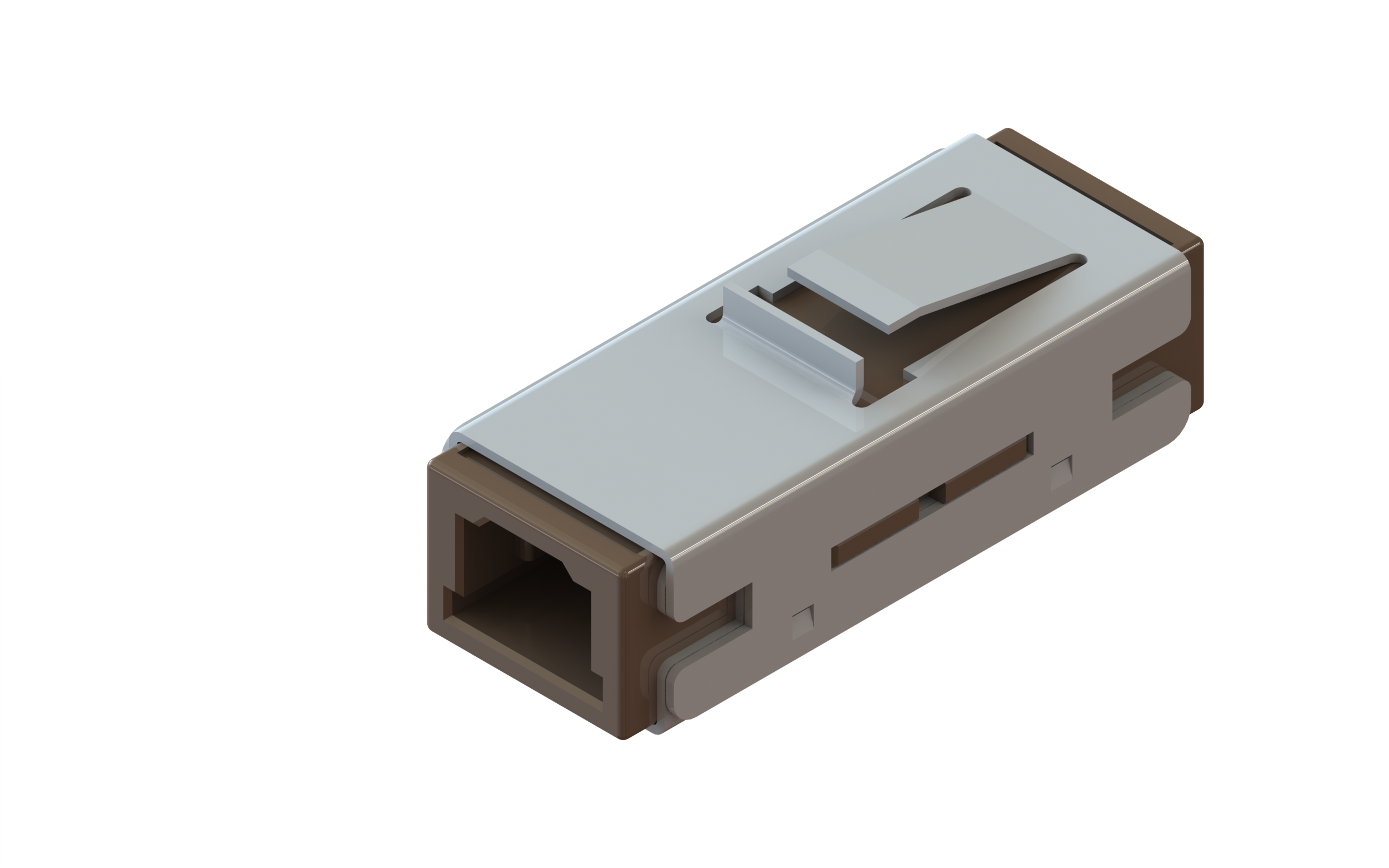

MU1MU Simplex AdapterNNo ShutterRRegular SpringRPReceptacleZZirconiaBRBrown
MU2MU Duplex Adapter

































  • MU Duplex Adapter V1.0

    2026.03.05
    pdf

  • MU Duplex Adapter V1.1

    2026.03.05
    pdf

  • MU Simplex Adapter

    2026.03.05
    pdf

  • MU Duplex Connector

    2026.03.06
    pdf

  • MU Simplex Adapters

    2026.03.06
    pdf
