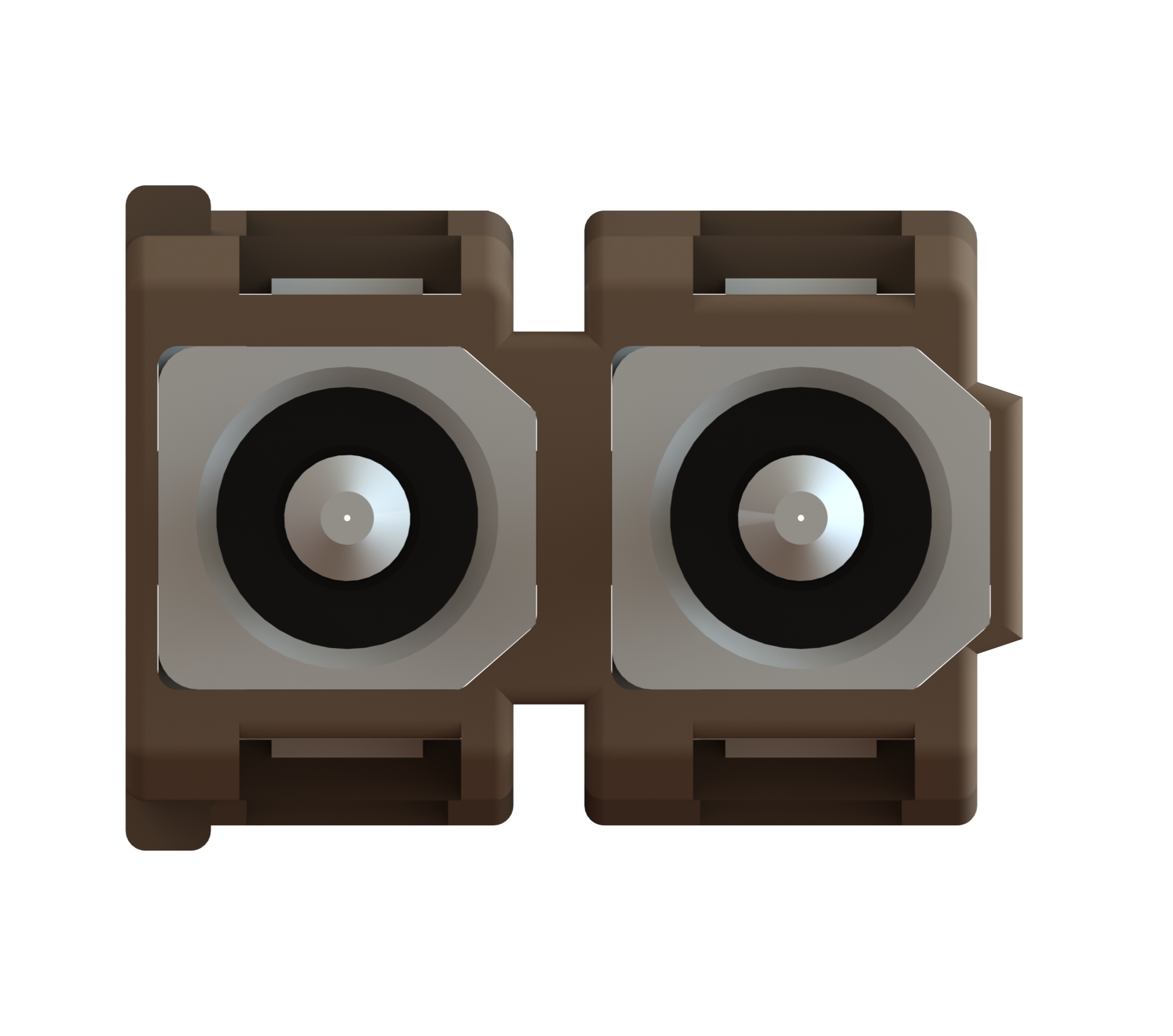

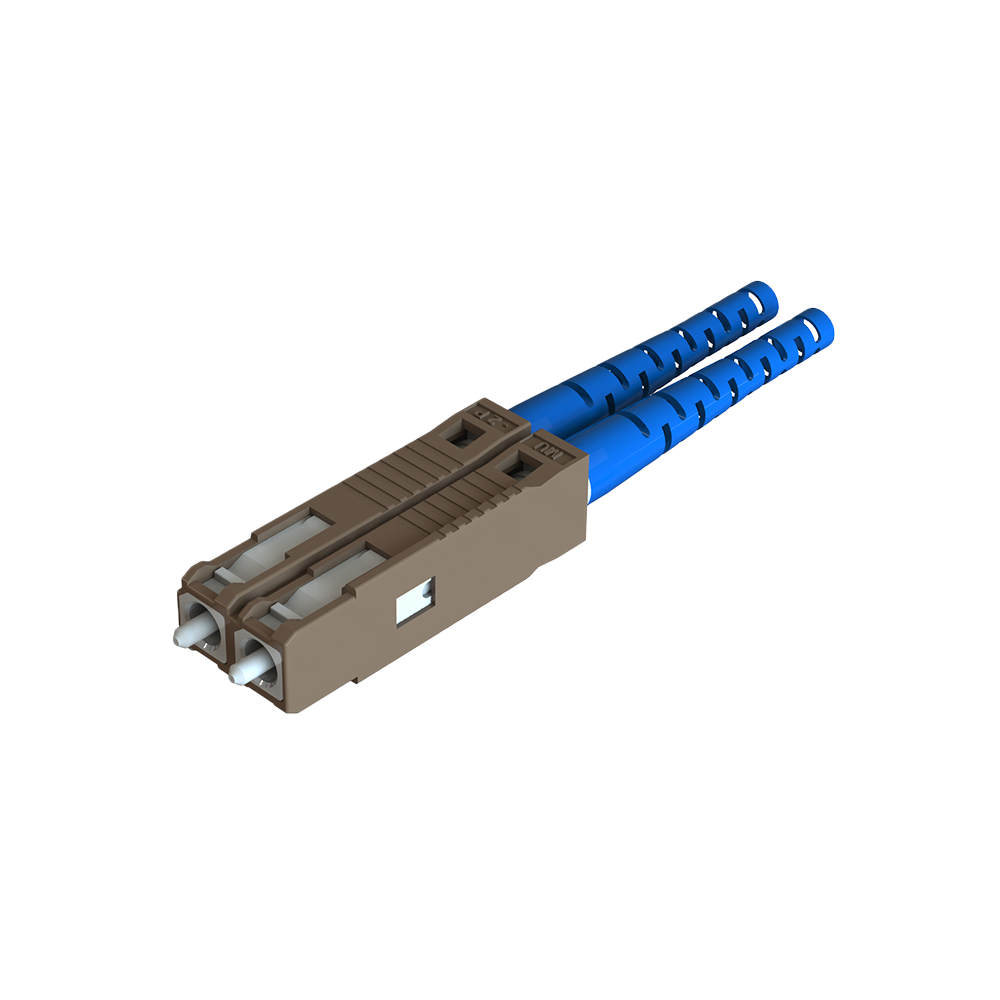

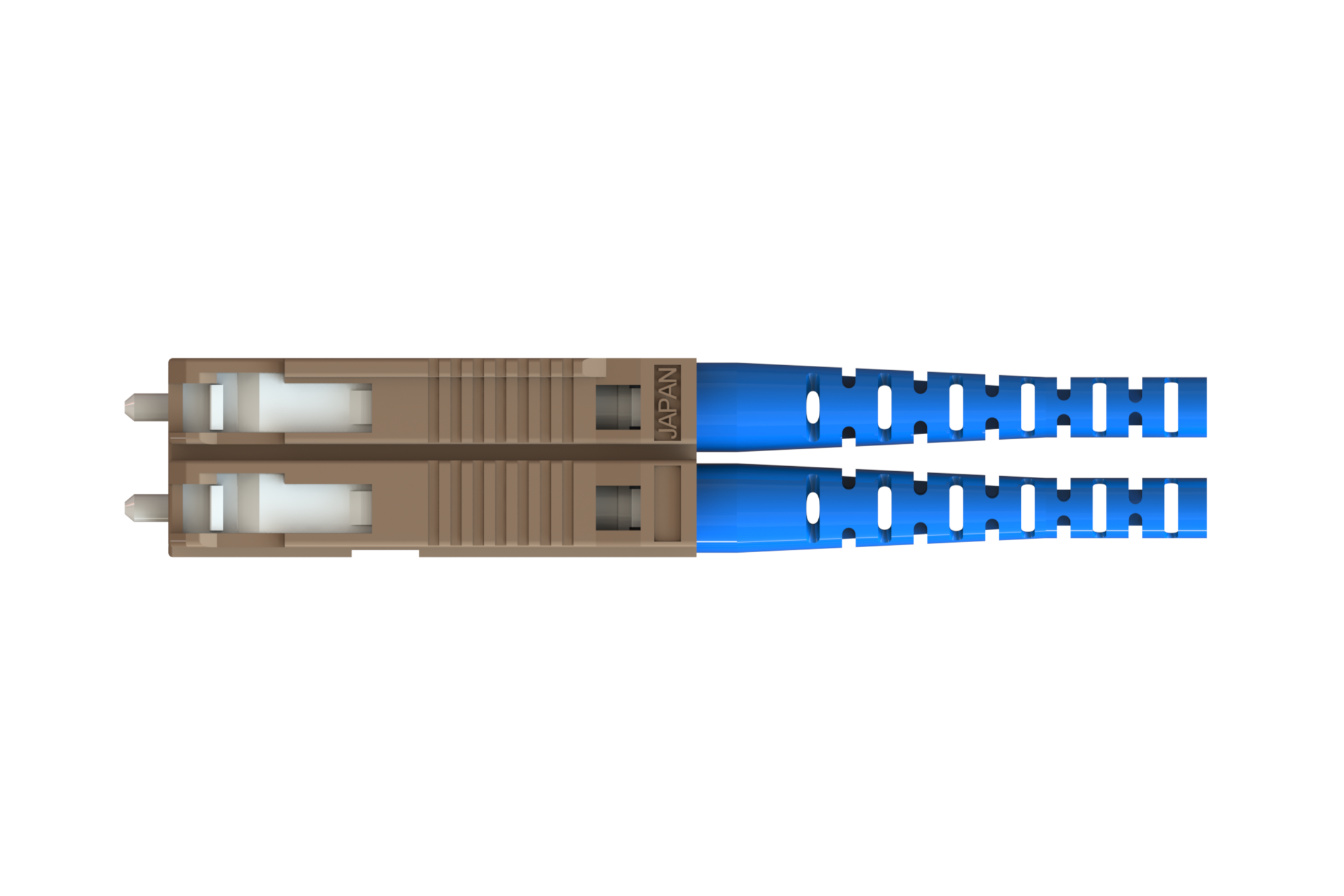

MU Duplex Connector

Our MU Duplex Connectors are small form factor (SFF) connectors with uni-housing or duplex clip options. The MU Duplex Connectors accommodate a full range of specifications including side-by-side, horizontal, top-bottom, and vertical duplex types. Available with a zirconia split-sleeve.

Housing Color

Boot Color

MU Duplex Connector

Product Features


Small form factor (SFF) connectors
Available with uni-housing or duplex clip options
Accommodates a full range of specifications


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC（55dB or more) ,APC（65dB or more）
Reference Standard：IEC-61754-6-1997 and IEC-61755-3-2

Select the product specifications here

  • 01

    Sort

Model List

Series ModeProduct TypeCable Spec Housing ColorFerrule Type & lD ConcentricityBoot TypeBoot ColorDust Cap Type
Shrink Tube Type
MU
MU ConnectorSSSingle Mode SimplexPPre Assy09φ0.9mm CableBRBrownF50125.0um050.5umRBRubber Boot(0.9mm Cable)BLBlueTT Dust CapNNo Tube


MSMulti Mode Simplex

20φ2.0mm Cable

F55125.5um(SM Standard)101.0umBCBellcore Boot(2.0mm Cable)VTViolet













F60126.0um404.0um



















































  • MU Duplex Connector 2.0mm

    2026.03.05
    pdf

  • MU Duplex Connector 0.9mm

    2026.03.05
    pdf

  • MU Duplex Connector 0.9mm

    2026.03.09
    pdf

  • MU Duplex Connector 2.0mm

    2026.03.09
    pdf
