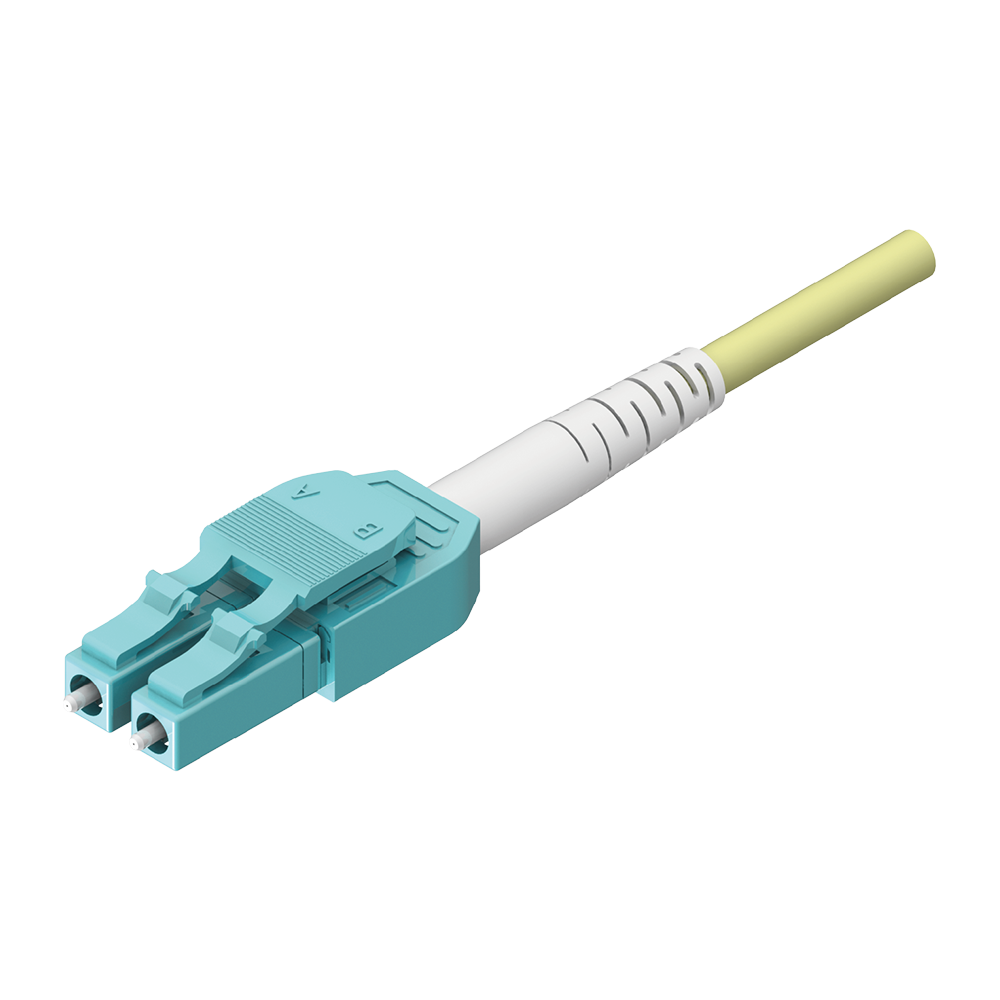

LC Uniboot Connector V5

Engineered for FTTA applications, the LC Uniboot Connector V5 features durable construction with a metal-to-metal crimp design, delivering strong retention force. Additionally, it offers a user-friendly Click & Flip polarity switch, making it an optimal choice for field deployment.

Housing Color

Boot Color

LC Uniboot Connector V5

Product Features

Stronger cable retention forces for FTTA & data centers applications

Easy Click & Flip polarity switch, no jig/tools needed

Avoid fiber exposure during polarity switching process

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more) ，APC（65dB or more）

Reference Standard：IEC-61754-20, 1EC-61755-3-1 and TIA-604-10A-2002 Standard-Type LC

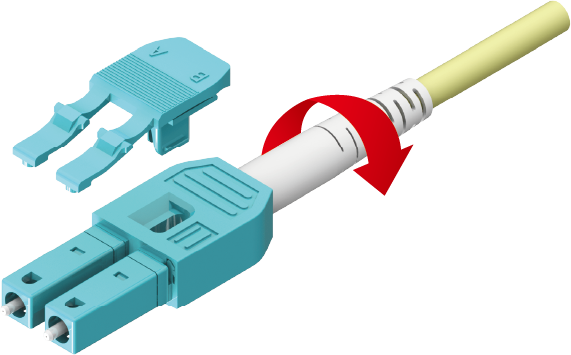

1Click to unlock bottom latch with finger

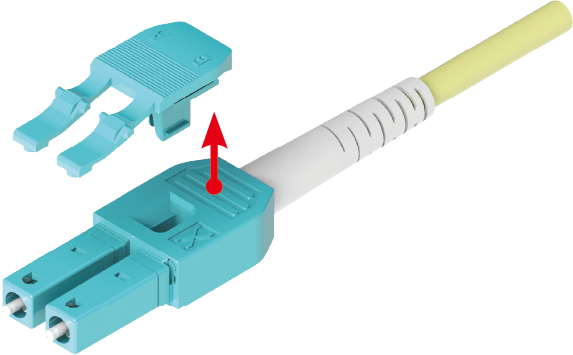

2Remove the latch from Uniboot

3Flip the connector body 180°

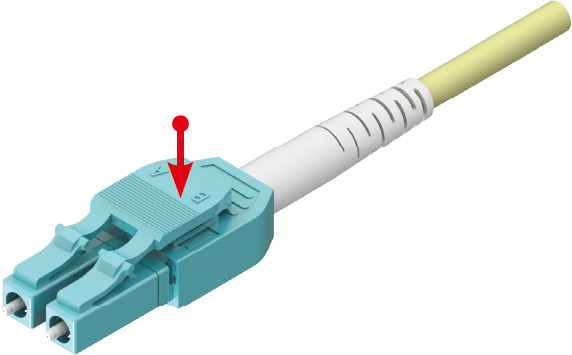

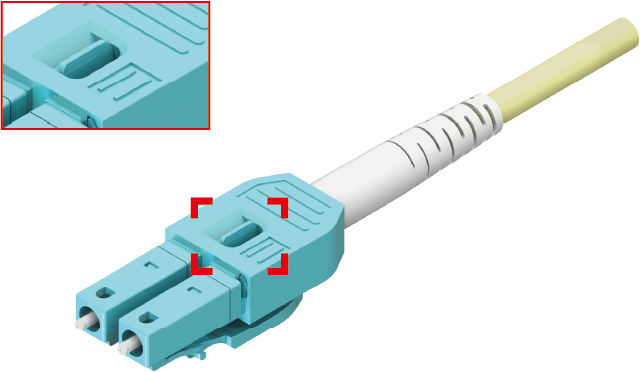

4Push the latch back in until click locks it in

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Boot Type		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Color		Dust Cap Type		Shrink Tube Type
LC	LC Connector	S	Single Mode	5L	Long Boot	P	Per Assy	20	Φ2.0mm Cable	AQ	Aqua	F50	125.0um	05	0.5um	BK	Black	S	Square Dust Cap	N	No Tube (5.0mm)
		M	Multi Mode	5S	Short Boot	K	Kit	30	Φ3.0mm Cable	BG	Beige	F55	125.5um (SM Standard)	10	1.0um (Standard)	WH	White			W	White (2.0/3.0mm Cable)
				5M	Middle Boot			50	Φ5.0mm Cable	BL	Blue	F60	126.0um	40	4.0um					Y	Yellow (2.0/3.0mm Cable)
				5B	Bendi Boot					GR	Green
										HV	Heather Violet
										LG	Lime Green

LC Uniboot Connector with Middle Boot V5 2.0&3.0mm

2026.03.05

pdf
LC Uniboot Connector with Long Boot V5 5.0mm

2026.03.05

pdf
LC Uniboot Connector with Bendi Boot V5 2.0mm

2026.03.05

pdf
LC Uniboot Connector with Long Boot V5 2.0mm

2026.03.05

pdf
LC Uniboot Connector with Long Boot V5 3.0mm

2026.03.05

pdf

LC Uniboot Connector with Short Boot V5 3.0mm

2026.03.06

pdf
LC Uniboot Connector with Middle Boot V5 2.0&3.0mm

2026.03.06

pdf
LC Uniboot Connector with Bendi Boot V5 2.0mm

2026.03.06

pdf
LC Uniboot Connector with Long Boot V5 5.0mm

2026.03.06

pdf

LC Uniboot Connector with Middle Boot V5 2.0mm

2026.03.06

pdf
LC Uniboot Connector with Long Boot V5 5.0mm

2026.03.06

pdf
