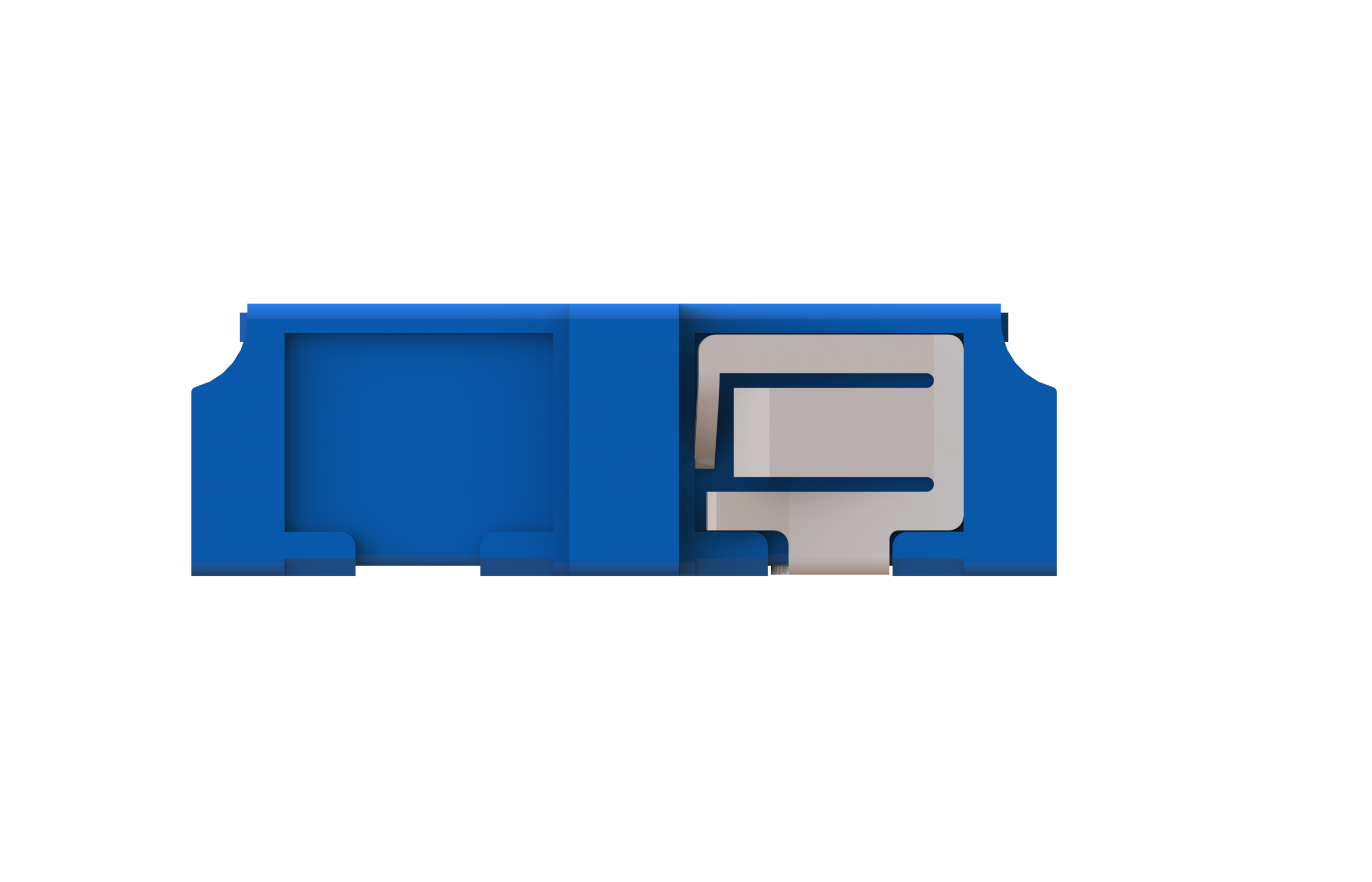

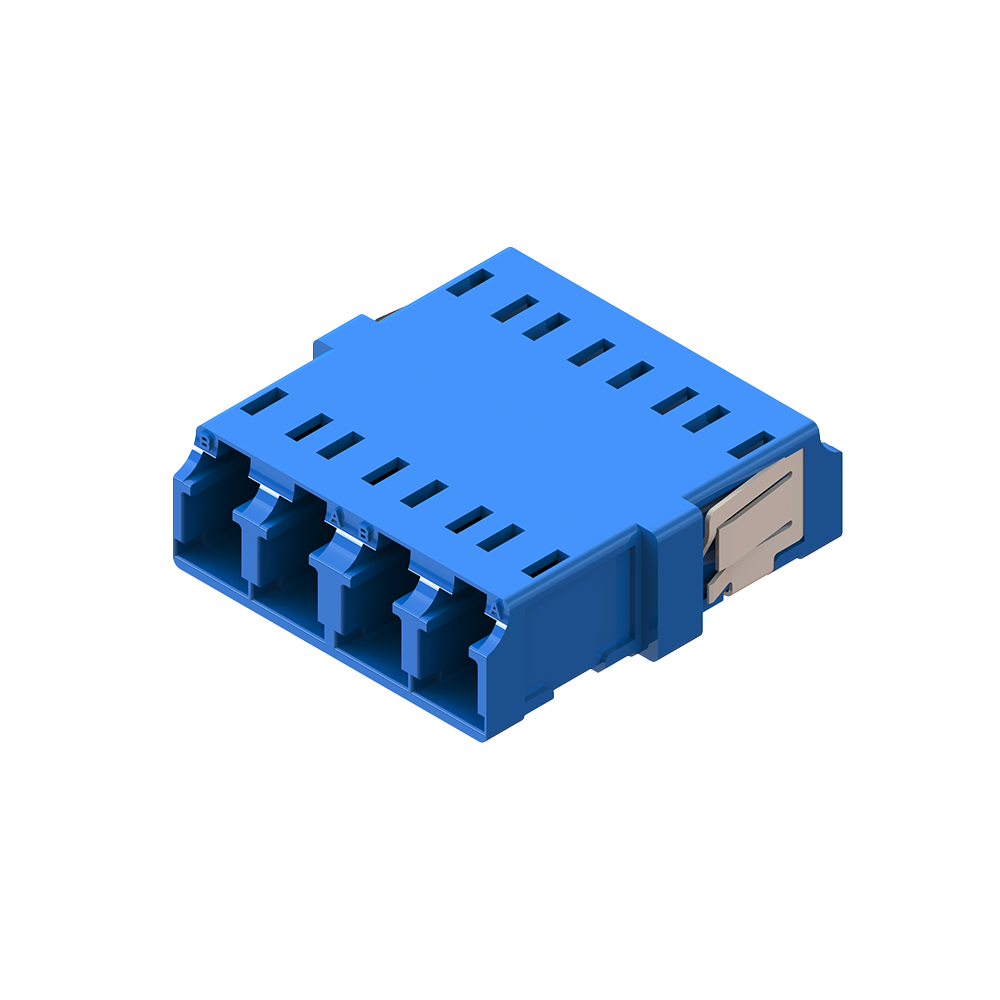

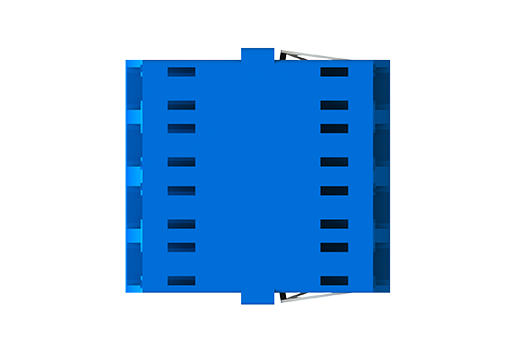

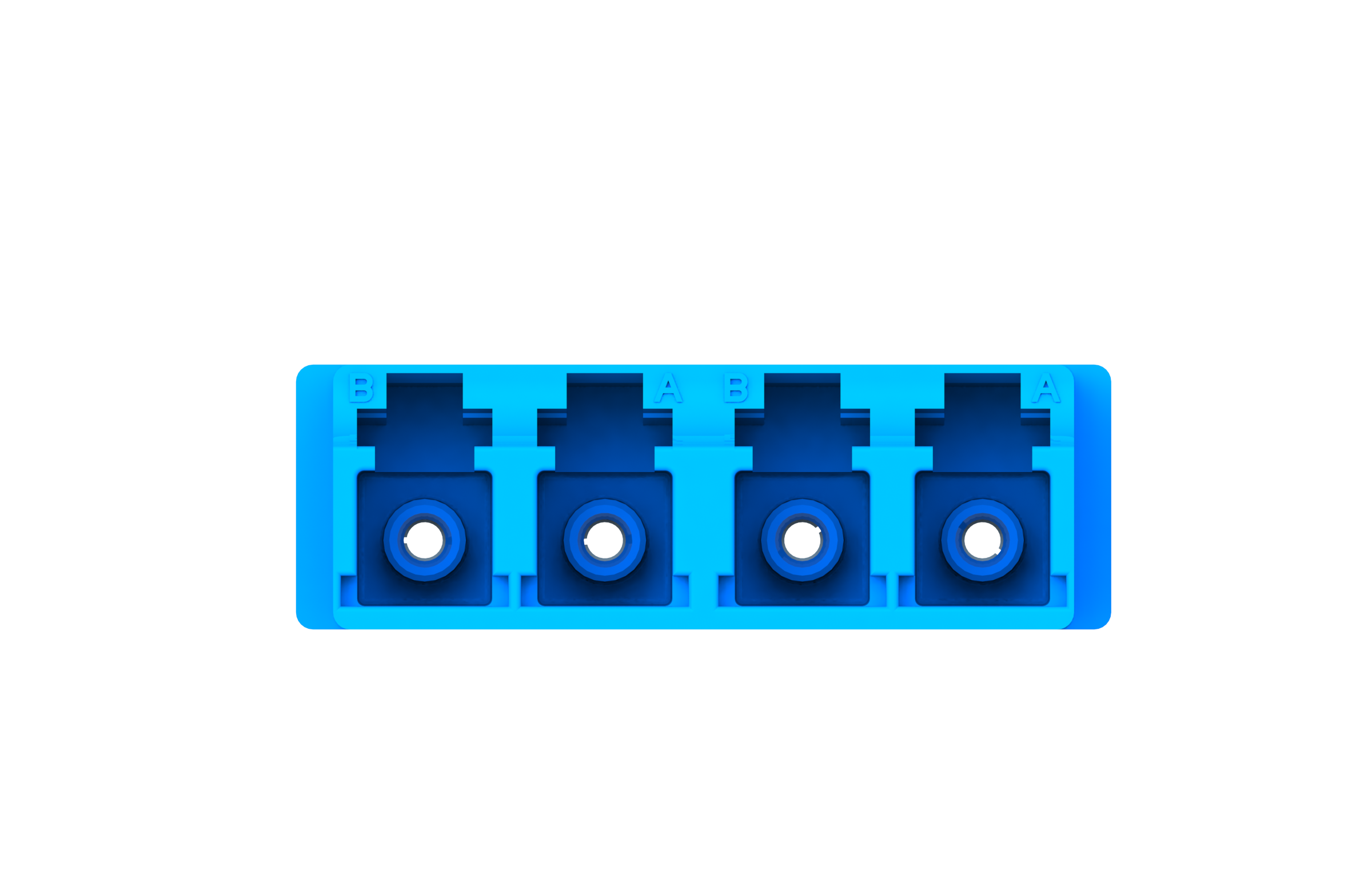

LC Slimpack Quad Adapters

LC Slimpack Quad Adapters can accommodate multiple LC fiber optic cables in a space-efficient design, featuring a variety of styles including screw flange,metal latch,and snug-in configurations.

Housing Color

LC Slimpack Quad Adapters

Product Features


Select from 3 configurations
Available in a variety of colors


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC（55dB or more) ，APC（65dB or more）
Reference Standard：IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

  • 01

    Sort

Model List

SeriesHousing ColorSleeve TypeHousing Color
LC4NSLC Slimpack Quad Metal LatchCRCompact ReceptacleZZirconiaAQAqua
LC4NPLC Slimpack Quad with Screw FlangeCLCompact Low-Profile

BGBeige
LC4NFLC Slimpack Quad Snug-in



BKBlack






BLBlue






HVHeather Violet






LGLime Green






OGOrange






RERed






VTViolet






YEYellow

  • LC Slimpack Quad Adapters V1.0（Side Stable Spring）

    2026.03.06
    pdf

  • LC Slimpack Quad Adapters（Side Stable Spring）

    2026.03.06
    pdf

  • LC Slimpack Duplex Adapters （Standard Spring）

    2026.03.06
    pdf
