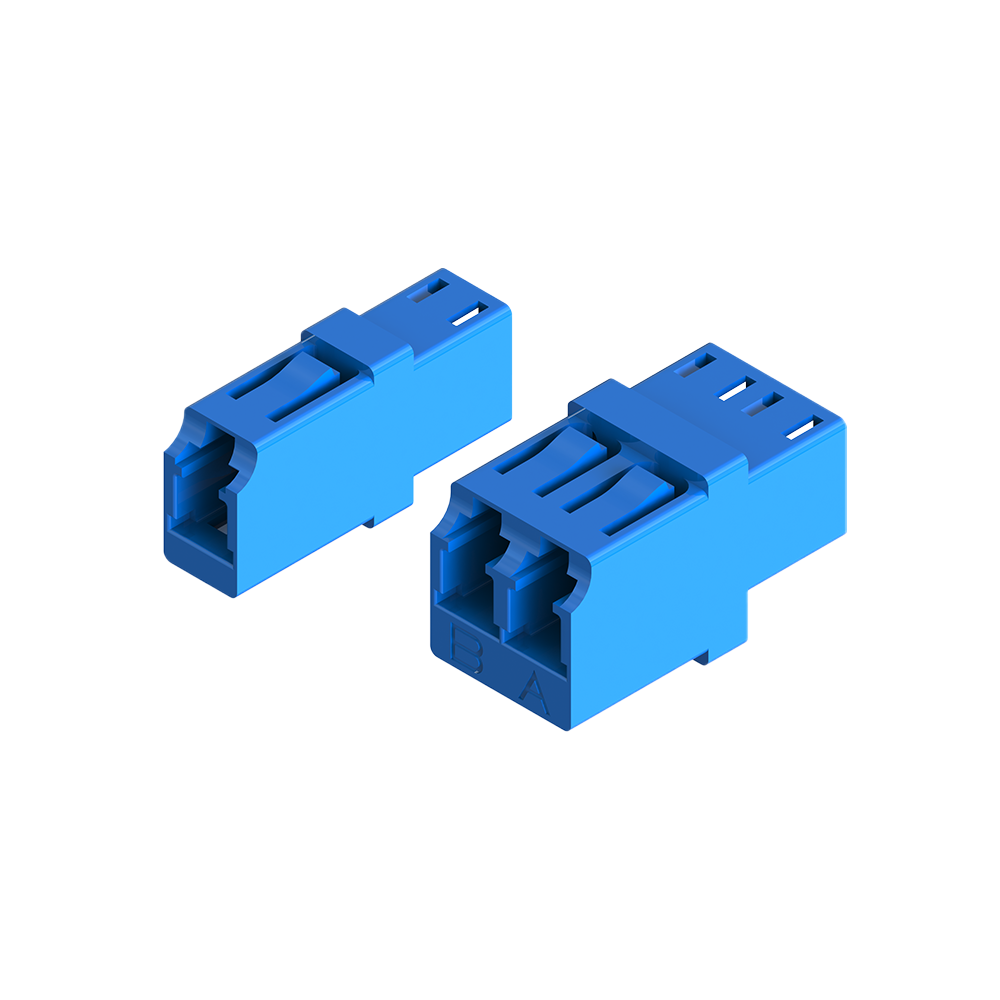

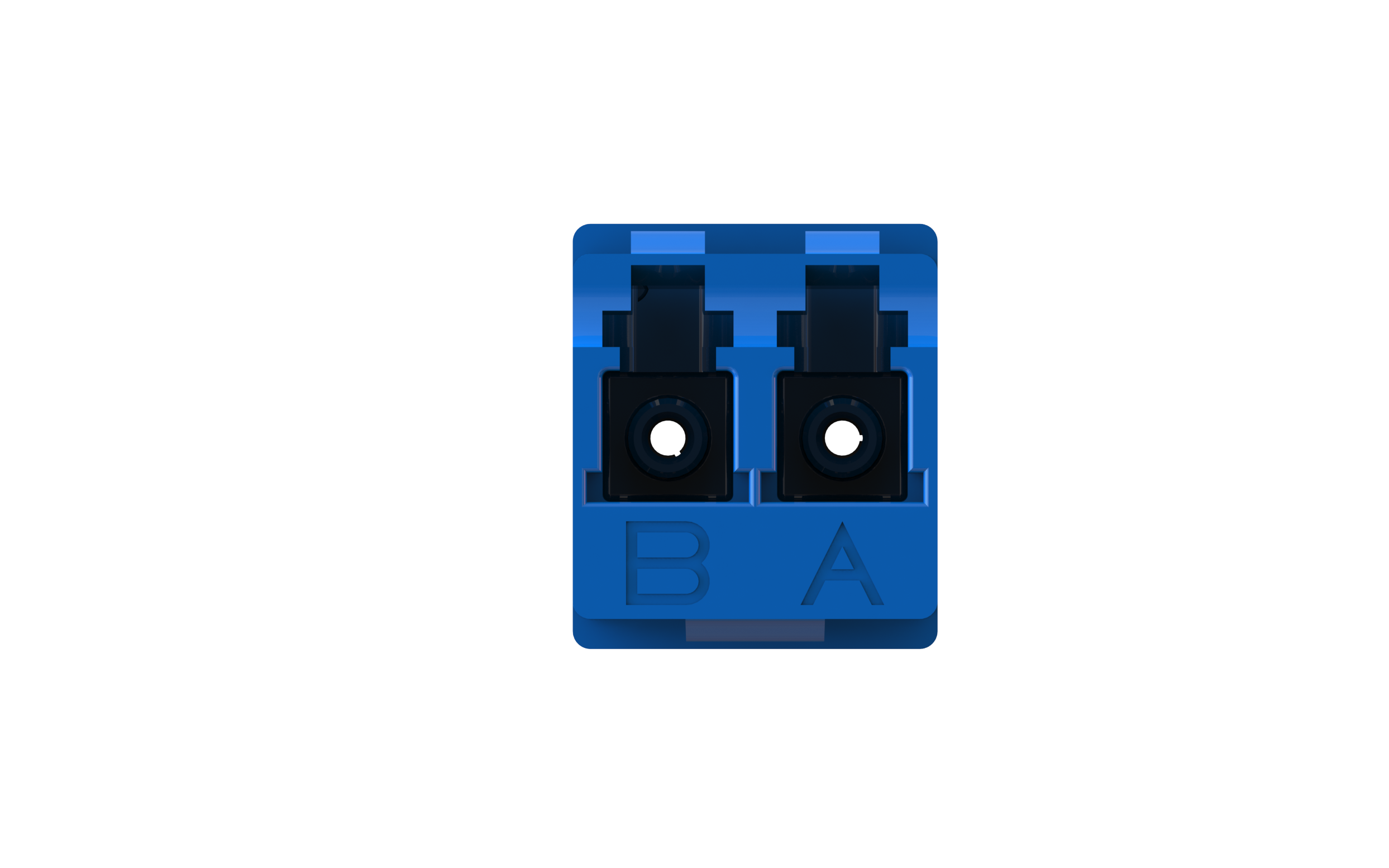

LC Simplex & Duplex Standard Adapters

LC Standard Adapters are precision molded and designed to fit any LC type connector. Used for single, multi-mode and APC applications, LC Simplex and Duplex Adapters are available in both standard and low-profile designs with zirconia split-sleeves.

Housing Color

LC Simplex & Duplex Standard Adapters

Product Features


2 design options: Standard & Low-Profile
Available in a variety of colors


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.2dB or lower
Return Loss：UPC（55dB or more) ，APC（65dB or more）
Reference Standard：IEC-61754-20 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

  • 01

    Sort

Model List

SeriesSleeve TypeHousing Color

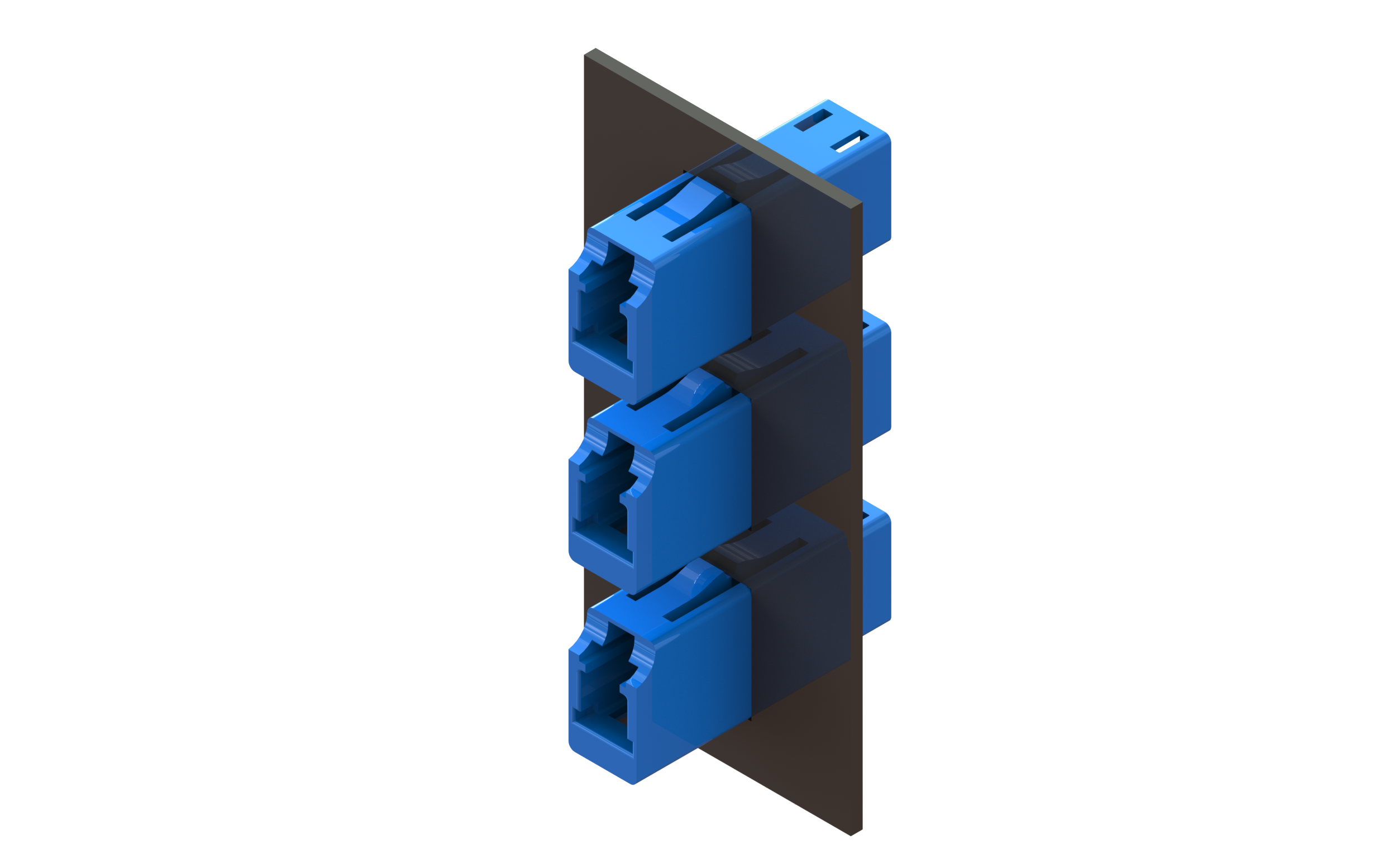

LC1NPLPLC Simplex Low-ProfileZZirconiaAQAqua
LC1NPRPLC Simplex Standard

BGBeige

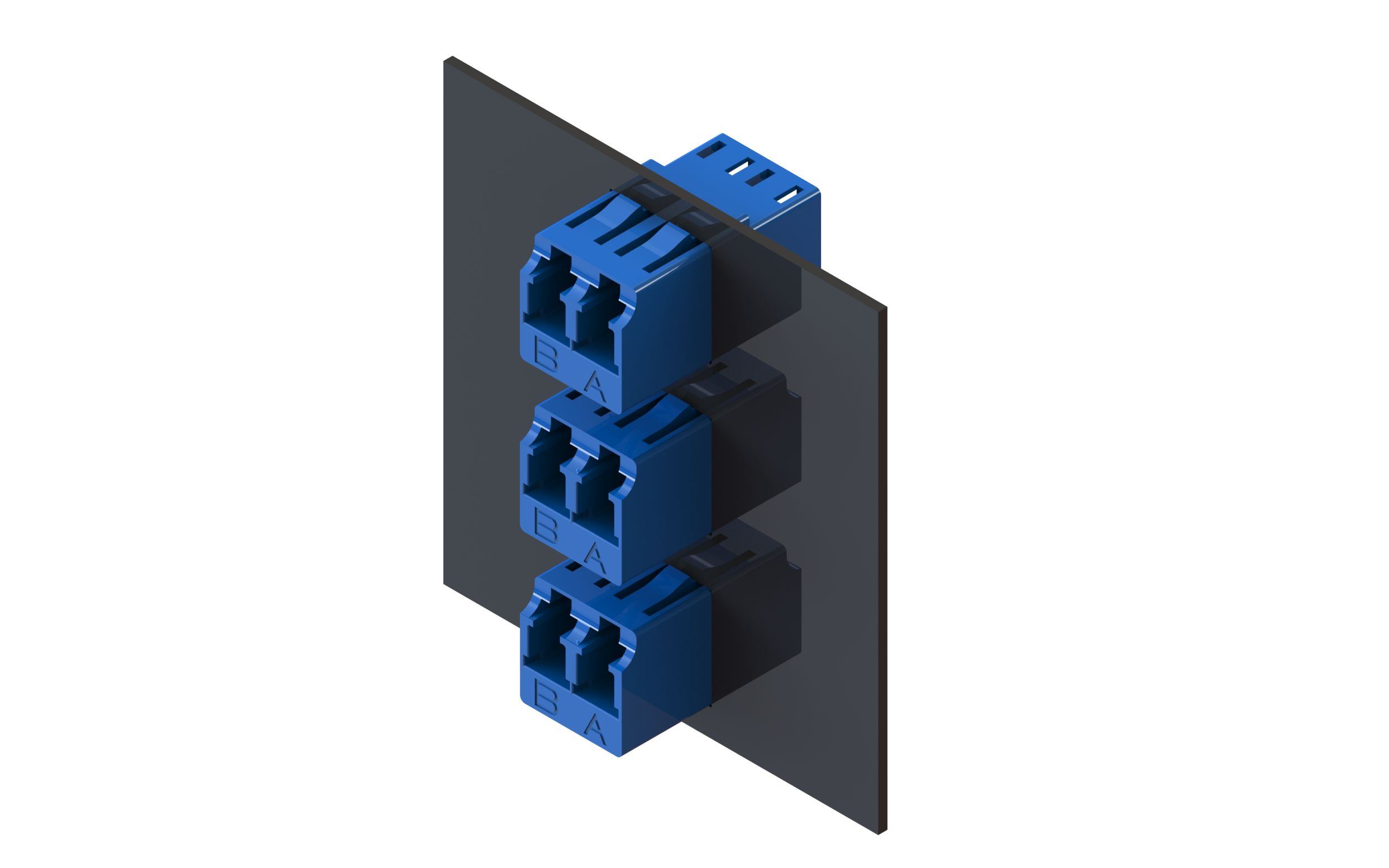

LC2NPLPLC Duplex Low-Profile

BKBlack
LC2NPRPLC Duplex Standard

BLBlue
LC2NPCFLC Duplex Compact Full Flange

BRBrown




GRGreen




HVHeather Violet




LGLime Green




OGOrange




RERed




VTViolet




YEYellow

  • LC Simplex Standard Adapters V2.0

    2026.03.05
    pdf

  • LC Duplex Standard Adapters V2.0 Lowprofile

    2026.03.05
    pdf

  • LC Simplex Standard Adapters V2.0 Receptacle

    2026.03.05
    pdf

  • LC Simplex Standard Adapters V2.1

    2026.03.05
    pdf

  • LC Duplex Standard Adapters （Vertical Stable Spring）

    2026.03.06
    pdf

  • LC Duplex Standard Adapters Lowprofile

    2026.03.06
    pdf

  • LC Simplex Standard Adapters

    2026.03.06
    pdf
