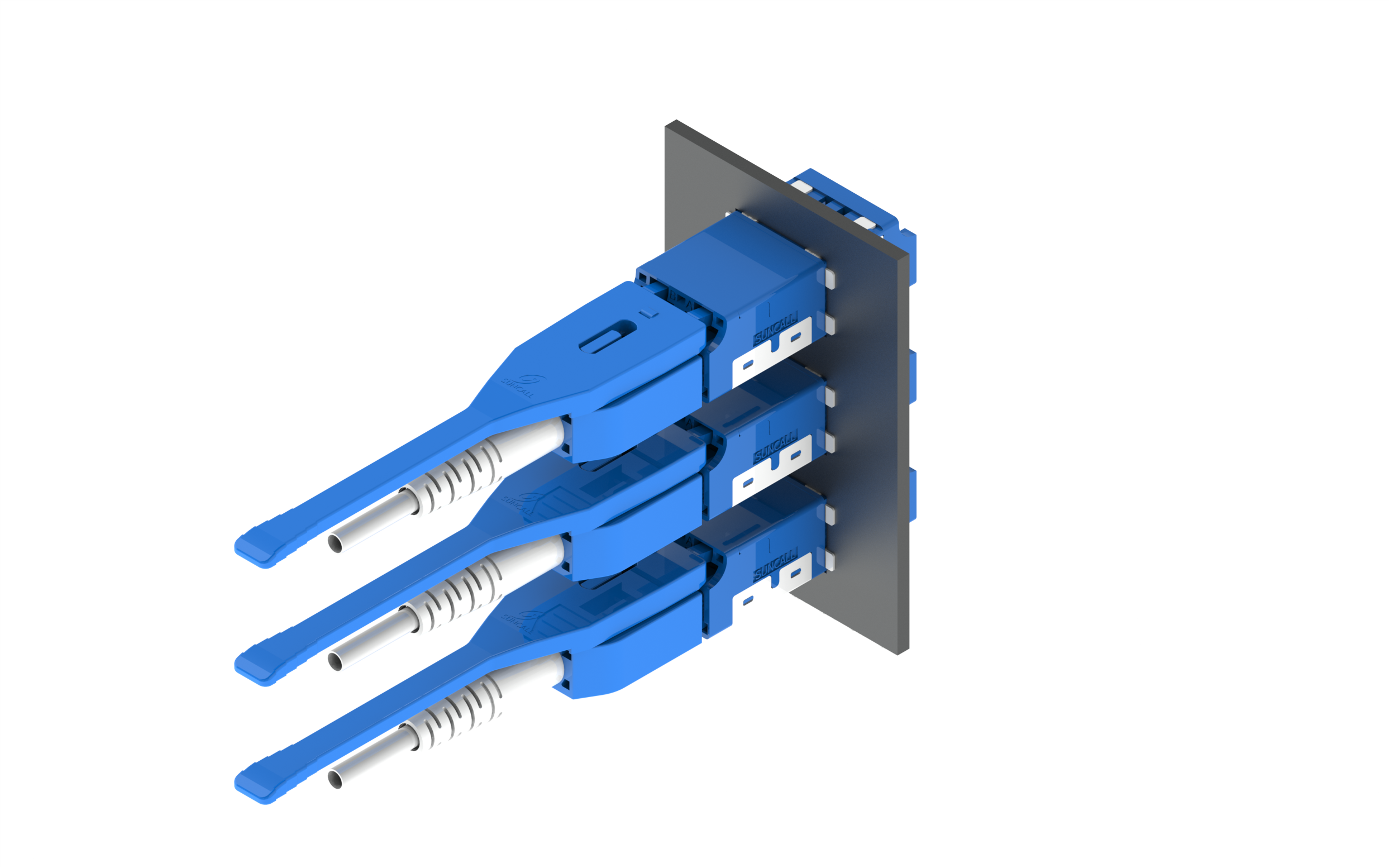

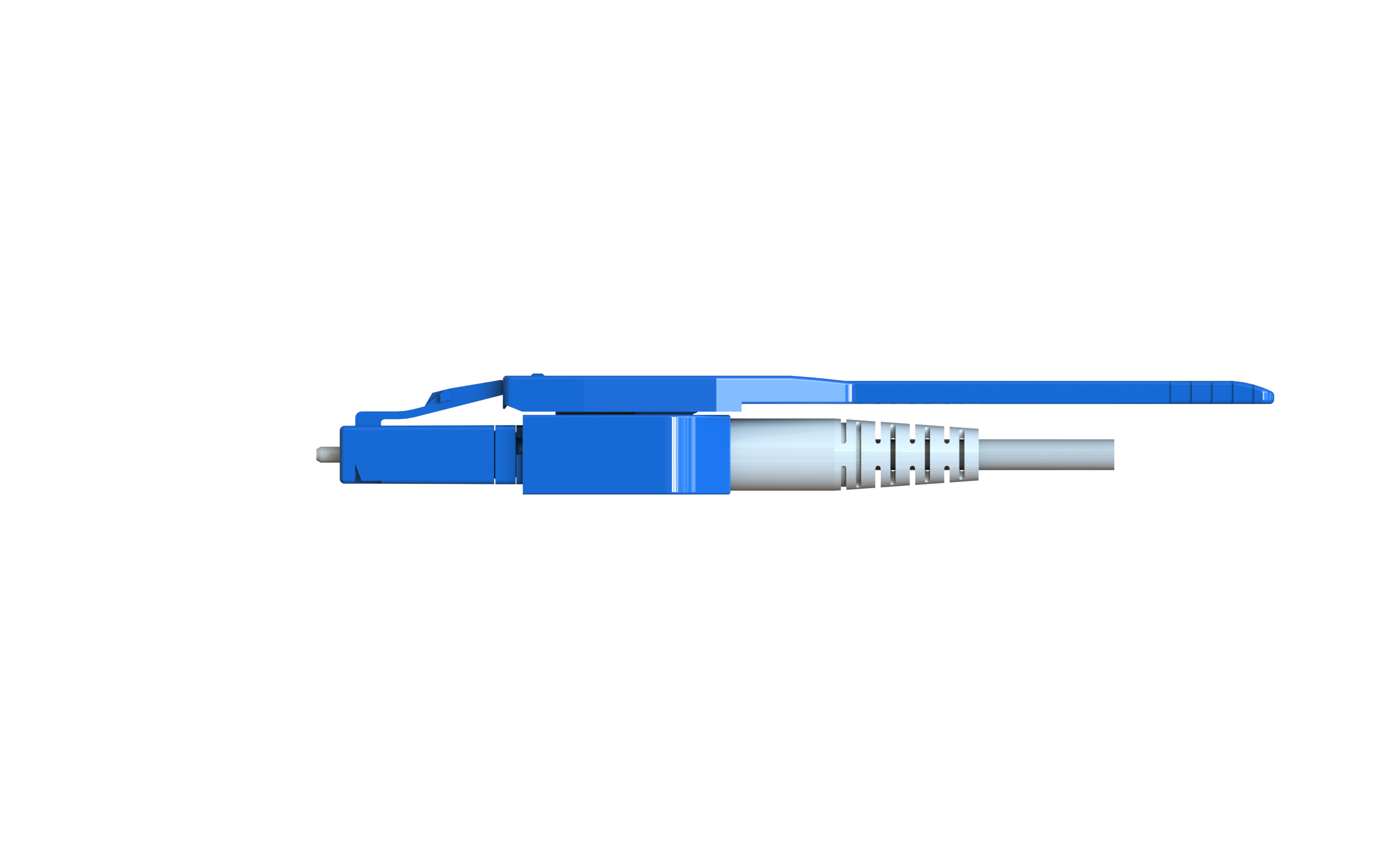

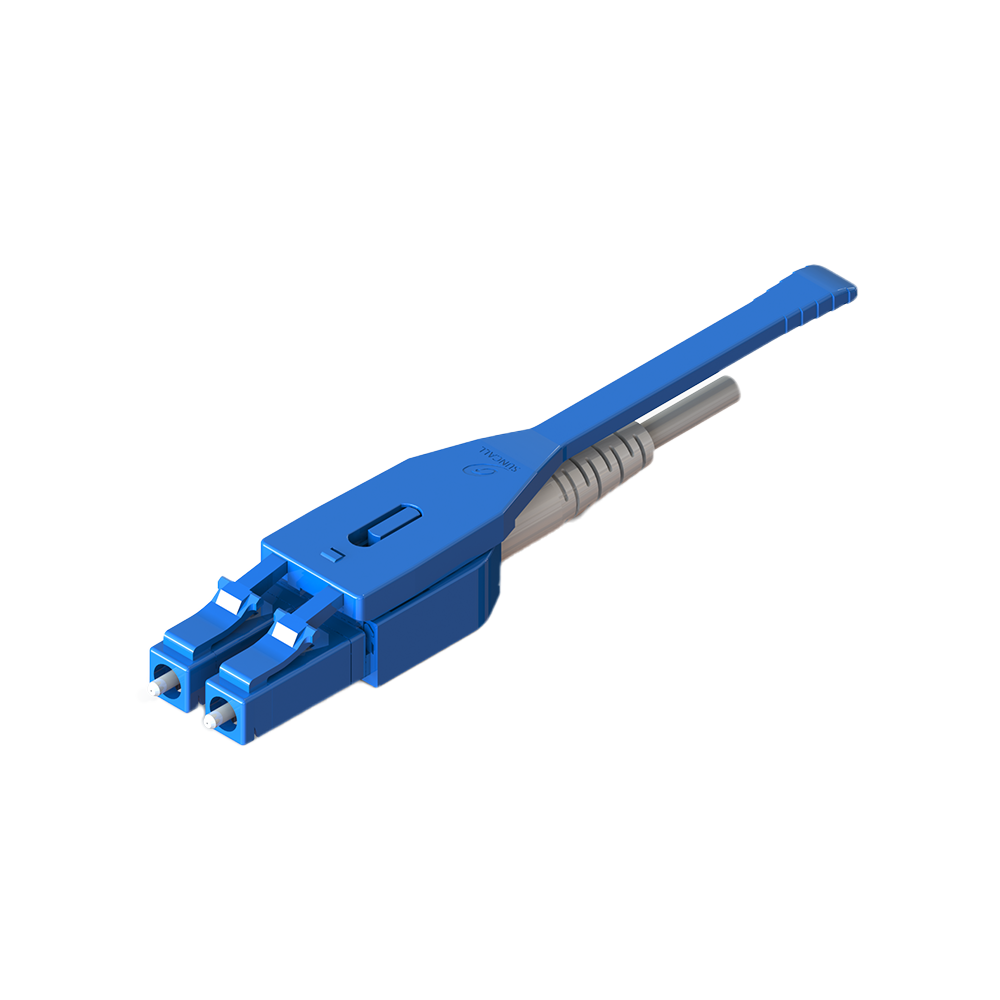

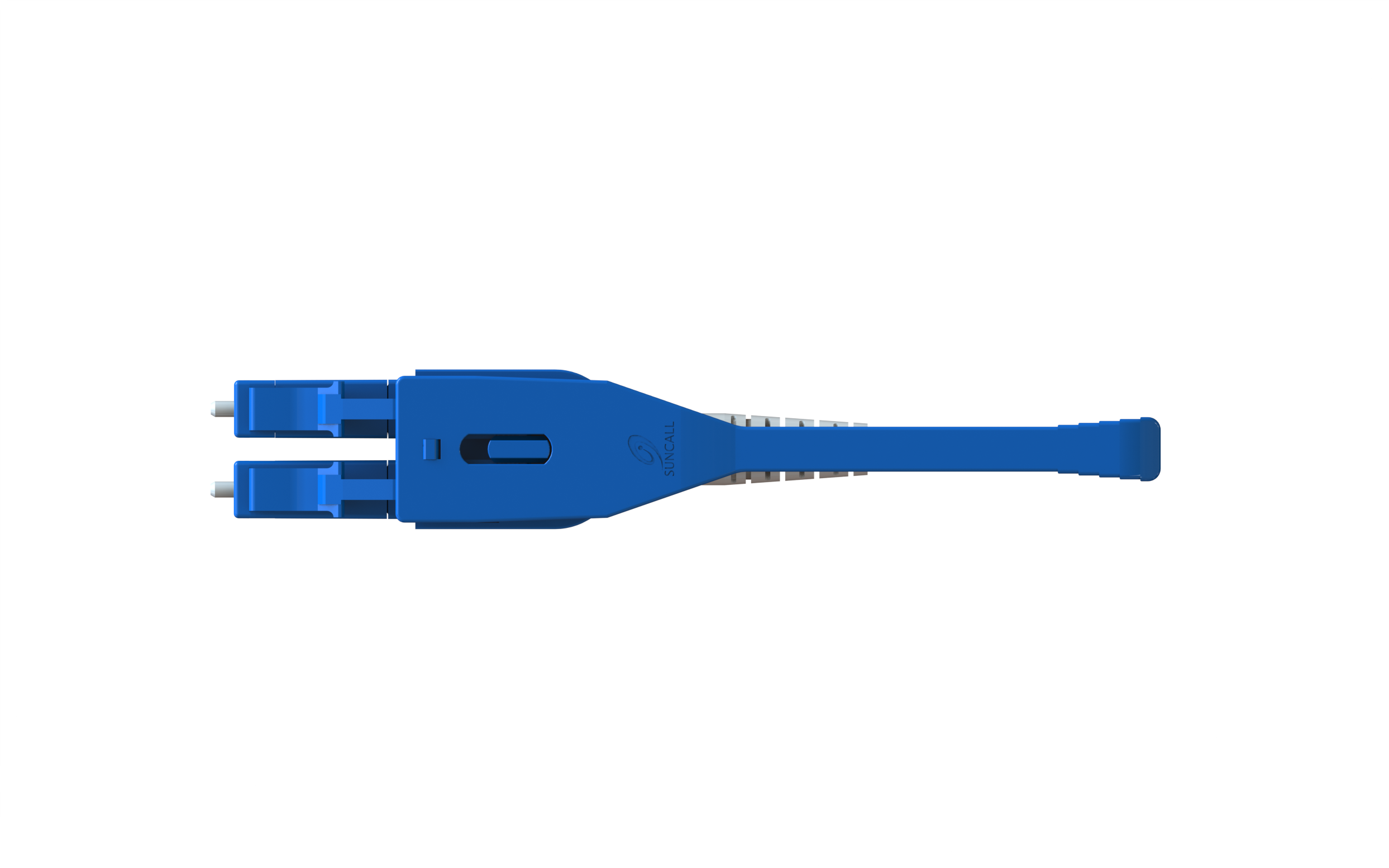

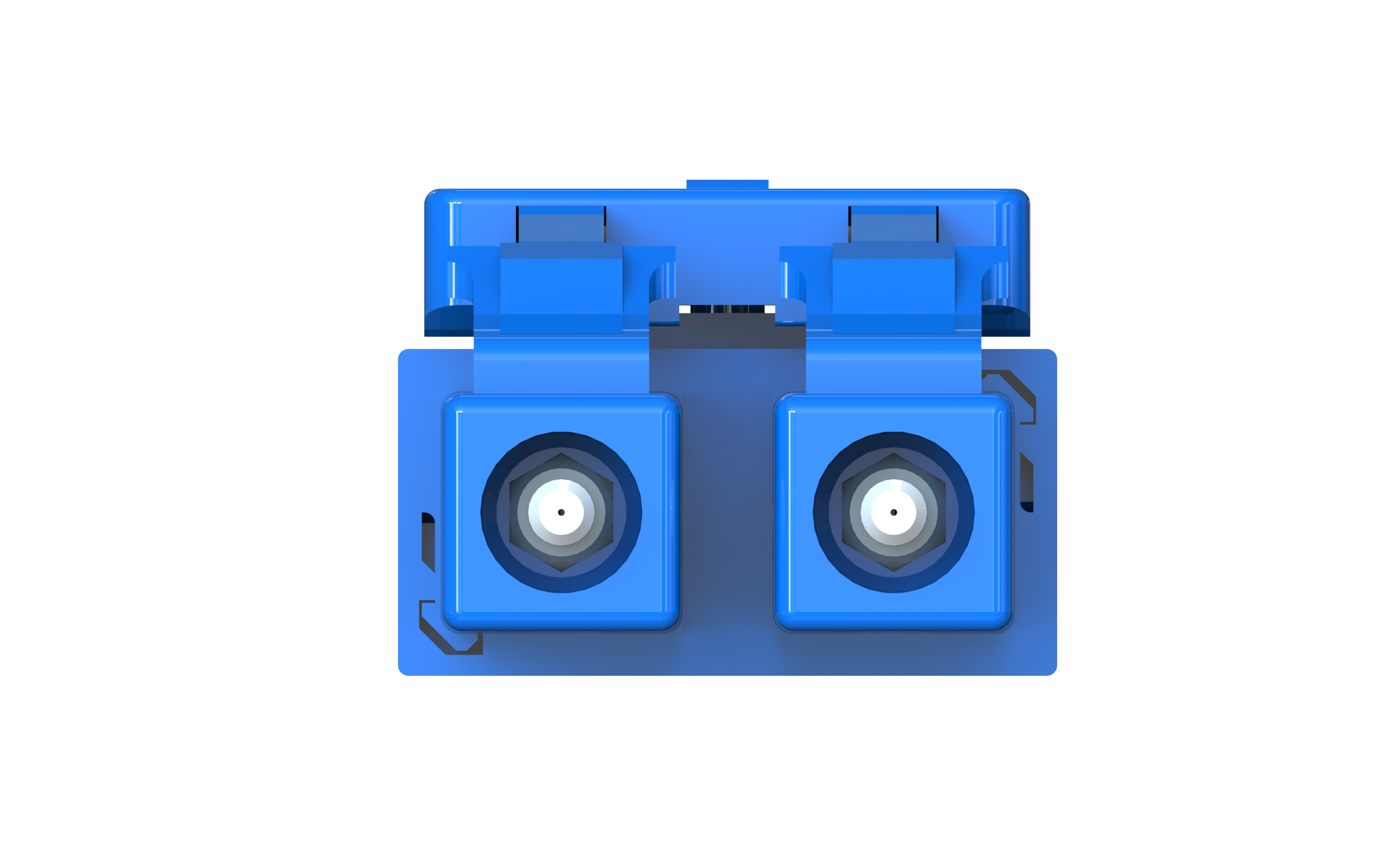

LC Push-Pull Uniboot Connector V5

The LC Push-Pull Uniboot Connector v5 is a durable design built for FTTA applications and offers a precision grip for easy extraction. For a fast polarity change in the field, our quick Click & Flip polarity change makes it simple and no jig is required.

Housing Color

Boot Color

LC Push-Pull Uniboot Connector V5

Product Features


Precision grip for easy extraction and insertion
Click & Flip polarity change, no jig required
Available in a variety of colors


Fiber Type：SM（9/125），MM（50/125，62.5/125）
Adaptation Pattern：SM，MM，APC
Insertion Loss：0.3dB or lower
Return Loss：UPC（55dB or more) , APC（65dB or more）
Reference Standard：IEC-61754-20,IEC-61755-3-1 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

  • 01

    Sort

Model List

Body TypeModeBoot TypeProduct TypeCable SpecHousing ColorFerrule Type & IDConcentricityBoot ColorPull-Tab ColorDust Cap TypeShrink Tube Type
LCLC ConnectorSSingle Mode5STShort Boot + Push-Pull TabPPer Assy20Φ 2.0mm CableAQAquaF50125.0um050.5umWHWhiteAQAquaSSquare Dust CapNNo Tube (5.0mm)


MMulti Mode5MTMiddle Boot + Push-Pull Tab

30Φ 3.0mm CableBGBeigeF55125.5um
(SM Standard)		101.0um
(Standard)		BKBlack (5.0mm)BGBeige

WWhite


AAPC5LTLong Boot + Push-Pull Tab

50Φ 5.0mm CableBLBlueF60126.0um404.0um

BLBlue

YYellow




5BTBendi Boot + Push-Pull Tab



GRGreen





GRGreen













HVHeather
Violet





HVHeather Violet













LGLime
Green





LGLime Green



















































  • LC Push-Pull Uniboot Connector V5 5.0mm V1.1

    2026.03.05
    pdf

  • LC Push-Pull Uniboot Connector V5 2.0&3.0mm V1.1

    2026.03.05
    pdf

  • LC Push-Pull Uniboot Connector V5 2.0mm V1.0

    2026.03.05
    pdf

  • LC Push-Pull Uniboot Connector v5

    2026.03.06
    pdf

  • LC Push-Pull Uniboot Connector With Short Tab v5 2.0mm

    2026.03.06
    pdf

  • LC Push-Pull Uniboot Connector With long Tab v5 2.0mm

    2026.03.06
    pdf
