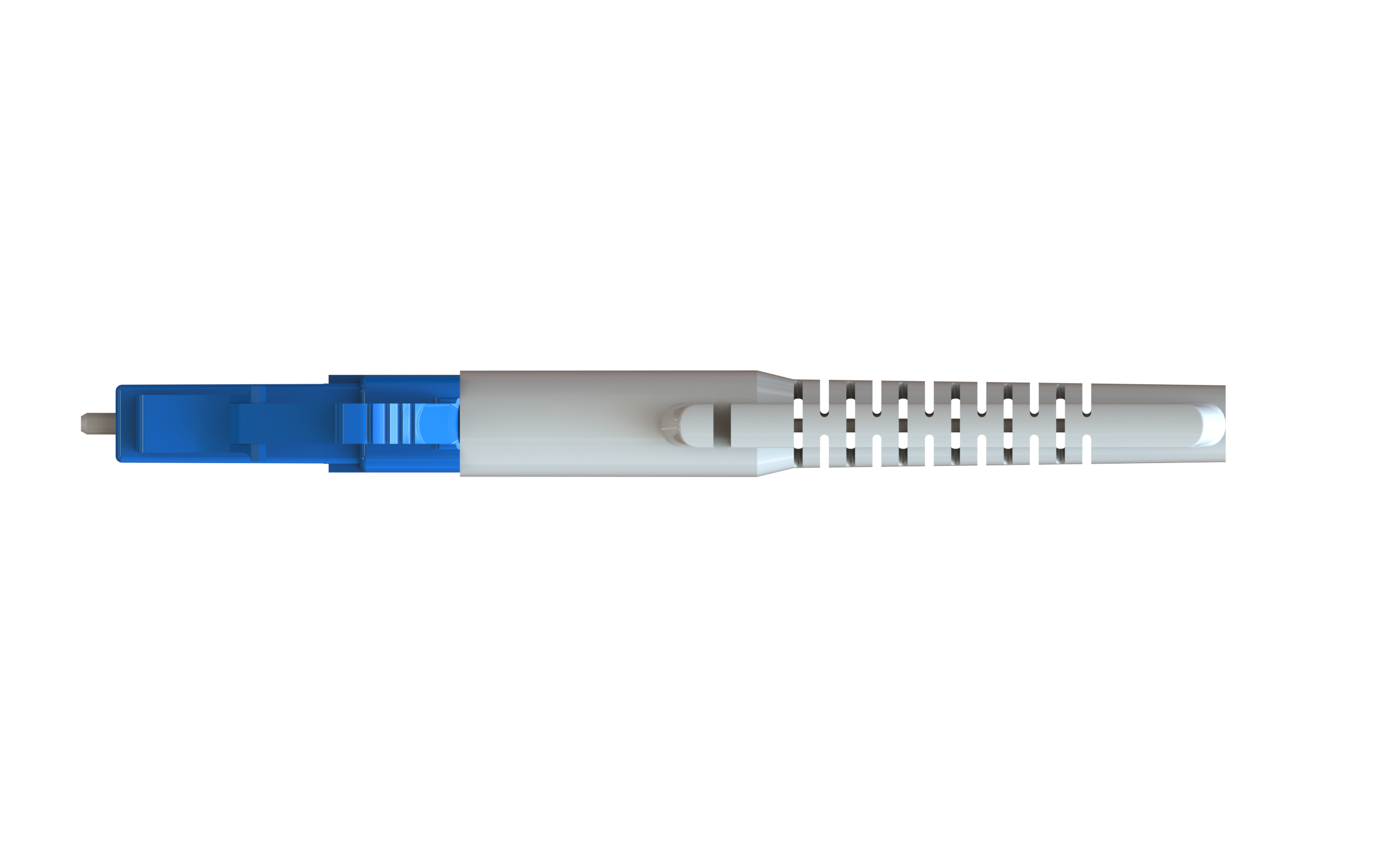

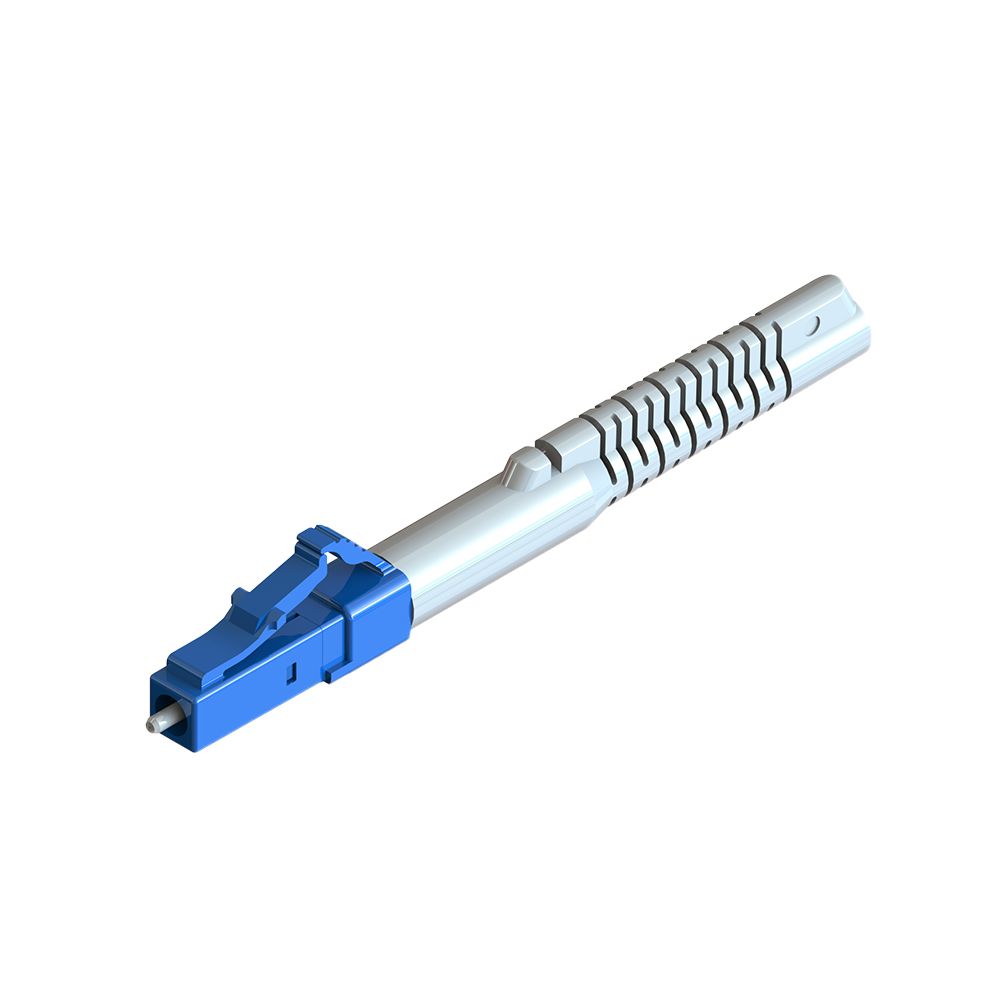

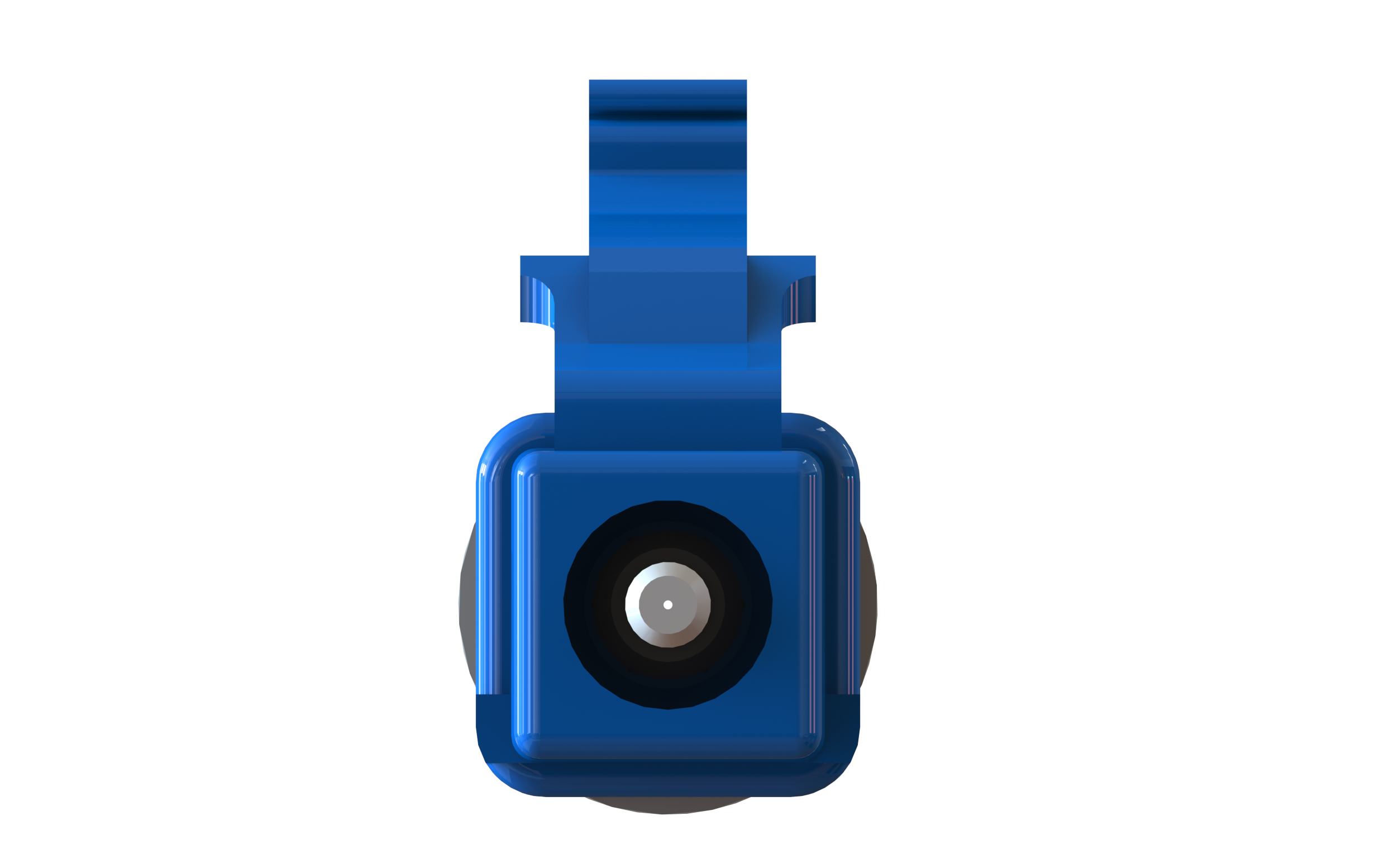

LC Bendi Boot Connector

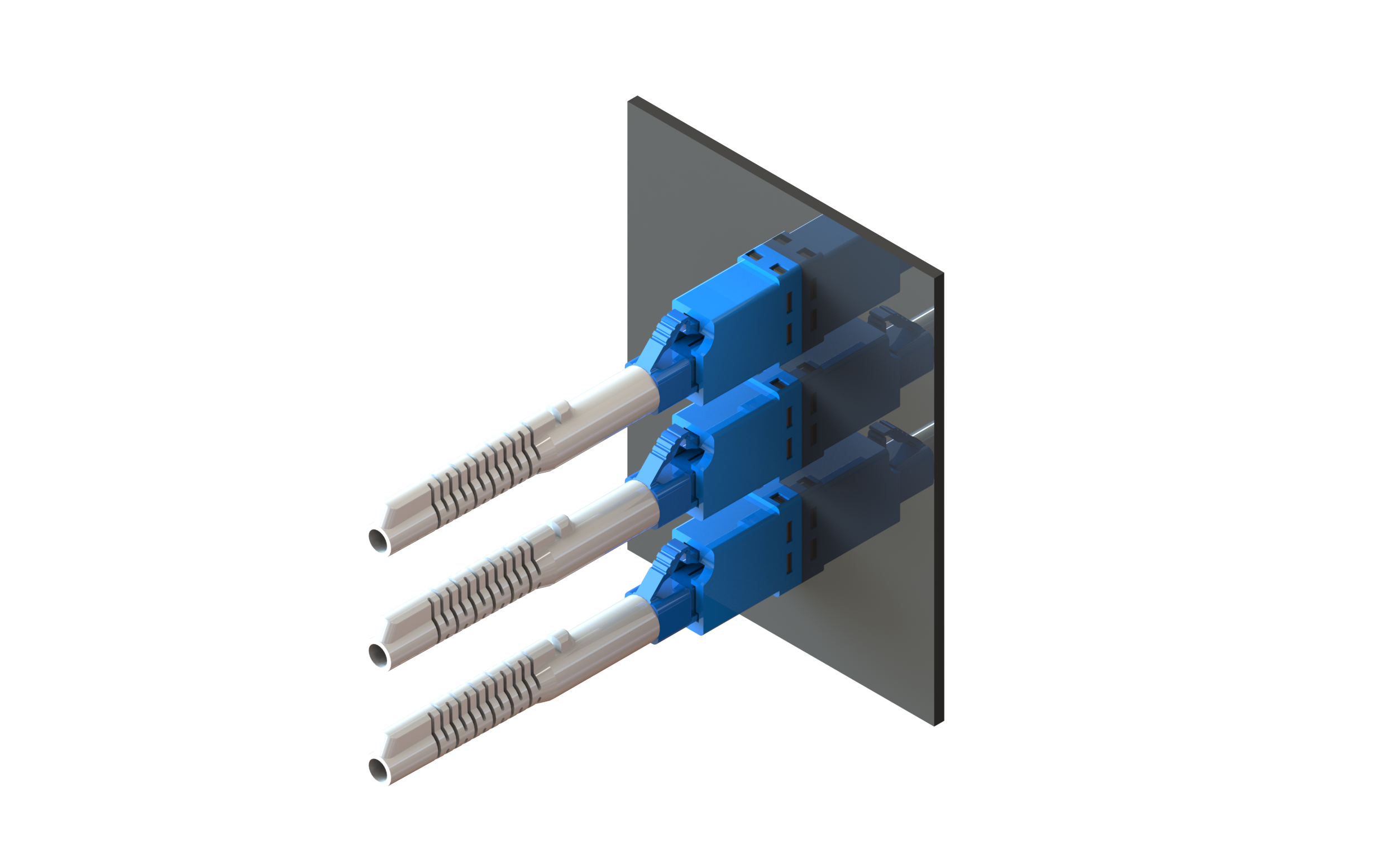

This specially designed boot offers versatility, freedom of movement, and superior access to high-density panels. Compatible with LC type cable systems, the LC Bendi Boot can be easily positioned by hand to maintain virtually any angle required by the application. This flexible boot is offered for LC simplex and duplex connectors.

Housing Color

LC Bendi Boot Connector

Product Features

Bendable boot that can conform to virtually any angle

Two body type options: 2-piece or Unibody

Available in a variety of colors

Fiber Type：SM（9/125），MM（50/125，62.5/125）

Adaptation Pattern：SM，MM，APC

Insertion Loss：0.3dB or lower

Return Loss：UPC（55dB or more) ，APC（65dB or more）

Reference Standard：IEC-61754-20,IEC-61755-3-2 and TIA-604-10A-2002 Standard-Type LC

Select the product specifications here

01

Sort

Model List

Body Type		Mode		Product Type		Cable Spec		Housing Color		Ferrule Type & ID		Concentricity		Boot Color		Dust Cap Type		Shrink Tube Type
LC	2-Piece Body	SS	SM Simplex	P	Per Assy	16	Φ1.6mm Cable	AQ	Aqua	F50	Flat 125.0um	05	0.5um	WH	White	S	Square Dust Cap	N	No tube
LU	Unibody	MS	MM Simplex			20	Φ2.0mm Cable	BG	Beige	F55	Flat 125.5um	10	1.0um (Standard)					W	White (Simplex)
		AS	APC Simplex			30	Φ3.0mm Cable	BL	Blue	F60	Flat 126.0um	40	4.0um					Y	Yellow (Simplex)
		SD	SM Duplex					GR	Green									WW	White & White (Duplex)
		MD	MM Duplex					HV	Heather Violet									WY	White & Yellow (Duplex)
		AD	APC Duplex					LG	Lime Green									YY	Yellow & Yellow (Duplex)

LC Duplex Bendi Boot Connector 2.0mm V2.0

2026.03.05

pdf
LC Duplex Bendi Boot Connector 3.0mm V2.0

2026.03.05

pdf
LC Simplex Bendi Boot Connector 2.0mm V1.0

2026.03.05

pdf
LC Duplex Bendi Boot Connector 2.0mm V1.0

2026.03.05

pdf
LC Simplex Bendi Boot Connector 3.0mm V2.0

2026.03.05

pdf
LC Simplex Bendi Boot Connector 2.0mm V2.1

2026.03.05

pdf

LC Duplex Bendi Boot Connector 3.0mm

2026.03.06

pdf
LC Duplex Bendi Boot Connector 2.0mm

2026.03.06

pdf
